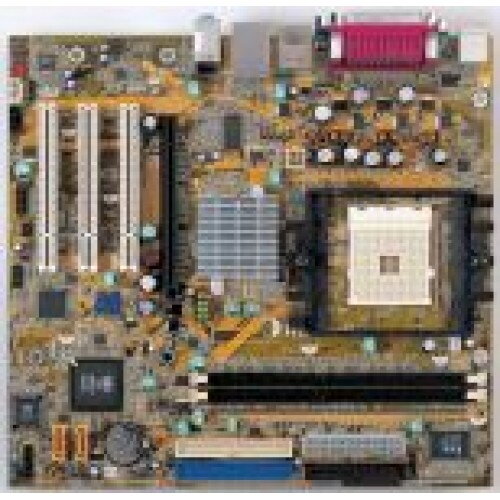

Foxconn 761GXK8MC-RS Socket 754 základná doska

Processor:
AMD Athlon™ 64, Sempron™ processors; Socket 754
Chipset:
SiS 761GX + SiS 964
Front Side Bus:
1600 MT/s HyperTransport™
Memory:
Single channel, DDR333/400 DRAM, x2 DIMMs
VGA on Die:
Integrated SIS MirageTM 1 graphics
Expansion Slots:
1 x PCIe x16, 3 x PCI
IDE:
ATA133 x 2
Serial ATA(SATA)/RAID:
Serial ATA x 2 with RAID 0, 1, JBOD
Audio:
5.1 channel, Realtek ALC653
LAN:
10/100M; Broadcom AC131 PHY
IEEE1394:
N/A
Back Panel I/O Ports:
1 x PS/2 keyboard

1 x PS/2 mouse

1 x parallel

1 x COM

4 x USB 2.0

1 x RJ45

1 set 5.1 channel Audio jacks (3 jacks)

1 x VGA port
Internal I/O Connectors:
2 x USB 2.0 headers, support 4 ports

1 x S/PDIF out header

1 x IrDA header

1 x AUX IN

1 x CD IN

1 x speaker header

1 x COM2 header

1 x buzzer (reseve)
BIOS Features:
LPC-4Mb, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Support CD:
Chipset Drivers, DirectX, USB 2.0 Driver, Audio Driver, Network Driver, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability:
USB 2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface
Special Features:
Wake on ring, LAN, USB, keyboard amp; mouse; STR (Suspend-to-Ram); STD (Suspend-to-Disk); SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperSpeed, SuperStep, SuperLogo, SuperUpdate
Form Factor:
Micro ATX (9.6” x 9.1”)
