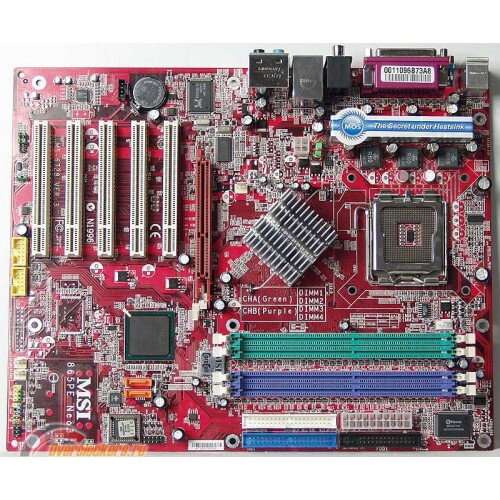

MSI 865PE Neo3-F LGA 775 Intel 865PE zakladna doska

Supported CPU

CPU Socket Type

LGA 775

CPU Type

Pentium 4 Prescott / Celeron D

FSB

800/533MHz

Supported CPU Technologies

Hyper-Threading Technology
Chipsets

Chipset

Intel 865PE

South Bridge

Intel ICH5
Memory

Number of Memory Slots

4×184pin

Memory Standard

DDR 400

Maximum Memory Supported

4GB

Channel Supported

Dual Channel
Expansion Slots

AGP Slots

1 x AGP 4X / 8X

PCI Slots

5
Storage Devices

PATA

2 x ATA100 4 Dev. Max

SATA 1.5 Gb/s

2
Onboard Video

Onboard Video Chipset

None
Onboard Audio

Audio Chipset

Realtek ALC850

Audio Channels

8 Channels
Onboard LAN

LAN Chipset

Realtek 8110S

Max LAN Speed

10/100/1000Mbps
Rear Panel Ports

PS/2

2

COM

1

LPT

1

USB 1.1/2.0

4 x USB 2.0

S/PDIF Out

1 x Optical, 1 x Coaxial

Audio Ports

5 Ports
Internal I/O Connectors

Onboard USB

4 x USB 2.0
Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"

Power Pin

20 Pin
Features

Features

Live Update; Fuzzy Logic; PC Alert; MSI CoreCell; MSI CoreCenter, DOT

The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
