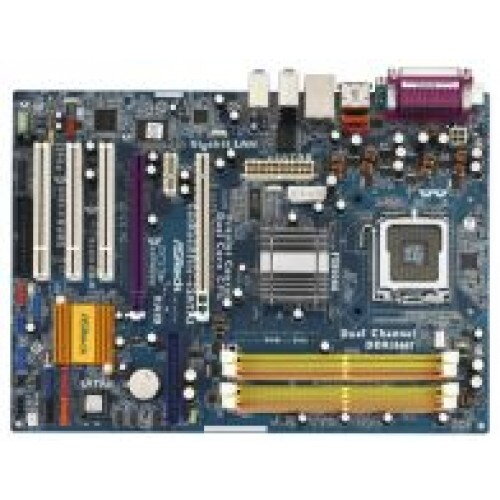

ASRock ConRoeXFire-eSATA2 LGA 775

General
CPU
- LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® 4 / Celeron® D

- FSB 1066/800/533 MHz

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU
Chipset
- Northbridge: Intel® 945P/945G

- Southbridge: Intel® ICH7R
Memory
- Dual Channel DDR2 memory technology

- 4 x DDR2 DIMM slots

- Supports DDRII 667/533 non-ECC, un-buffered memory

- Max. capacity of system memory: 4GB*

*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP, Windows® XP 64-bit, Windows® Vista™ and Windows® Vista™ 64-bit.
BIOS
- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- n/a
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111B

- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- Supports ATI™ CrossFire™

- 3 x PCI slots

- 1 x PCI Express x16 slot

- 1 x AGI Express slot (PCI Express x 4)

- 1 x PCI Express x1 slot
Connector
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and "Hot Plug" functions

- 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports), support "Hot Plug" function

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x HDMI_SPDIF header

- 2 x IEEE 1394 headers

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin 12V power connector

- SLI/XFire power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O
ASRock 8CH_eSATAII I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x COM Port

- 1 x Parallel Port (ECP/EPP Support)

- 2 x Ready-to-Use USB 2.0 Ports

- 2 x eSATAII Ports

- 1 x RJ-45 LAN Port

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster
- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 100 Cables

- 4 x SATA Data Cables (optional)

- 2 x SATA 1 to 1 Power Cables (optional)

- 1 x HDMI_SPDIF Cable (optional)

- 1 x USB+1394 bracket
Hardware Monitor
- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
