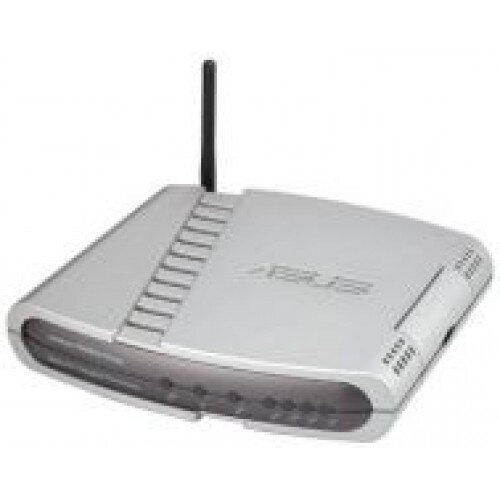

ASUS WL-500g Deluxe

WAN Ports
Support:

Both Ethernet and 802.3 with Max. Bit Rate 10/100 Mbps with auto cross-over function (MDI-X)

Connector:

RJ45 for 10/100 BaseT
Antenna
Support:

Both Ethernet and 802.3 with Max. Bit Rate 10/100Mbps with Auto cross-over function (MDI-X), 4 port switch

Connector:

4 x RJ45 for 10/100BaseT
USB Interface
Support: 2 x USB 2.0 hosts

Connector: USB type A
Buttons
Reset Button:

Push for 5 seconds to restore factory setting
Management
Web-based manager

UPnP Internet Gateway Device
Firewall
NAT and SPI

Can built extra one firewall to protect Internet traffic and another one for wireless
Operating Frequency
2.4 - 2.5 GHz

Operation Channels

11 for N. America, 14 Japan, 13 Europe (ETSI)
Modulation
OFDM, CCK, DQPSK, DBPSK
Data Rate
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11b: 1, 2, 5.5, 11Mbps
LAN Ports
Support:

Both Ethernet and 802.3 with Max. Bit Rate 10/100Mbps with Auto cross-over function (MDI-X), 4 port switch

Connector:

4 x RJ45 for 10/100BaseT
Range
Indoor 130 ft (40 m), outdoor (LOS, Light-Of-Sight) 300 ft (100 m) at 11MbpsIndoor 80 ft (25 m), outdoor (LOS, Light-Of-Sight) 200 ft (60 m) at 54MbpsThe range may vary by different environment
DC Adapter
AC Input: 100V~240V(50~60HZ); DC Output: 5V with max. 2 A current
Dimensions
185 mm (L)* 205 mm (W)* 36 mm (H) excluding one external antennas

500g excluding power supply
