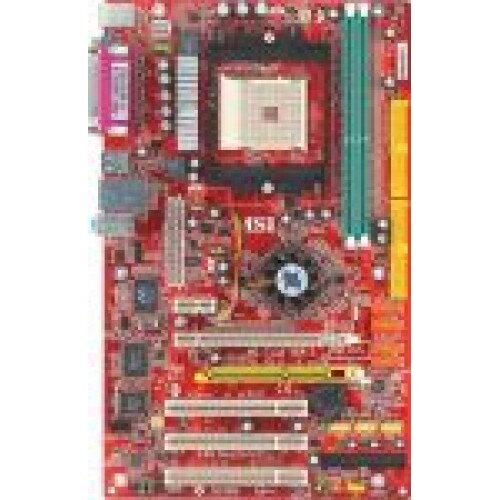

MSI K8N Neo3 Socket 754 základná doska

CPU
• Supports 64-bit AMD® Athlon™ 64, Sempron™ and Turion™64 processor (Socket 754)

• Supports up to 3200+, 3400+, 3700+ or higher CPU

• Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• NVIDIA® nForce4-4X Chipset

- HyperTransport link to the AMD Athlon 64 CPU

- Supports single-channel DDR333/400 memory

- Supports PCI Express x16/x1 interface

- Two independent SATA controllers, for four drives

- Dual Ultra ATA 133/100/66 IDE controllers

- Supports high-speed USB2.0 ports

MSI Reminds you:

1. Please use MSI Live BIOS tool to upgrade BIOS of this product.

2. Because of the limitations of chipset, this MB does not support Win98/ME.


Main Memory



• Supports single channel, four-memory-bank DDR 333/400 using two 184-pin DDR

DIMMs

• Supports a maximum memory size up to 2GB without ECC

• Supports 2.5v DDR DRAM DIMM



Slots
• One PCI Express x16 slot (PCI Express Bus specification v1.0a compliant)

• One PCI Express x1 slot (PCI Express Bus specification v1.0a compliant)

• Three 32-bit Master 3.3V/5V PCI Bus slots

• One AGR (Advance Graphics Riser) slot for compatible AGP VGA cards



The AGR slot is a special design that only supports compatible AGP VGA cards. For more detailed information on compatible AGP VGA cards, please refer here



On-Board IDE/SATA



• Dual IDE controllers on the nVIDIA® nForce4-4X chipset provides IDE HDD/CDROM

with PIO, Bus Master and Ultra DMA 133/100/66 operation modes.

- Can connect up to 4 IDE devices.



• Supports 4 SATA ports with up to 1.5Gb/s transfer rate.



• NV RAID (Software)

Supports up to 4 SATA and 4 ATA133 Hard drives

- RAID 0, 1, 0+1, or JBOD supported

- RAID function available for PATA133 + SATA H/D drives
MSI Reminds You...

• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Audio
• RealTek ALC655 6 Channel software audio codec

- Compliance with AC97 v2.3 Spec.

- Meet PC2001 audio performance requirement.



LAN
• Marvell PHY 88E1111 Gigabit Ethernet chip



USB Interface
• 10 USB ports

- Controlled by nForce4-4X chipset

- 4 ports in the rear I/O, 6 ports via the external bracket



Internal I/O Connectors
- ATX 24-Pin power connector

- 4-pin ATX 12V power connector

- CPU / NB / System FAN connectors

- 1 x Floppy disk drive connector

- 4 x serial ATA connectors

- 2 x ATA133 HD connectors

- Front panel audio connector

- Front USB connectors: JUSB1, JUSB2, JUSB3 connector support additional 6 ports

- Front panel connector

- Serial port header

- CD-in connector

- Chassis intrusion switch connector
MSI Reminds You...

• The floppy disk cable will be optional.


Back Panel I/O Ports
- 1 x Parallel

- 1 x Serial port (COM 1)

- 1 x PS/2 Keyboard

- 1 x PS/2 Mouse

- 1 x Audio I/O (Line-in/Line-out/MIC)

- 4 x USB 2.0

- 1 x RJ45 LAN Jack



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 30cm(L) x 18.5cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
