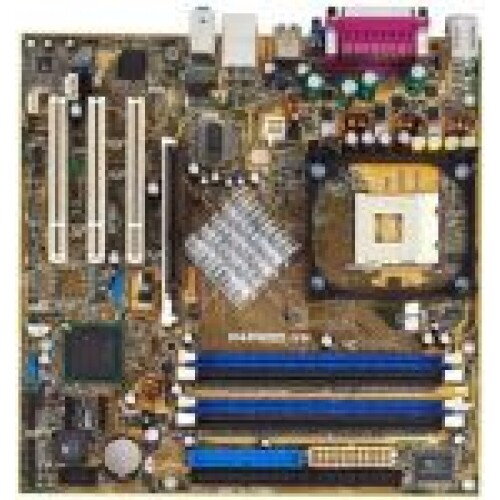

ASUS P4P800-VM/S

Specifications
CPU
-Socket 478 for Intel Pentium 4/ Celeron up to 3.4GHz+

-Intel Hyper-Threading Technology ready

-New power design supports Intel next generation Prescott CPU
Chipset
Intel 865G GMCH

Intel ICH5
Front Side Bus
800/533/400MHz
Memory
Dual channel memory architecture

4 x 184-pin DIMM Sockets support max. 4GB PC3200/PC2700/PC2100 non-ECC DDR SDRAM memory
VGA
Next generation integrated Intel Extreme Graphics
Expansion Slots
1 x AGP 8X

3 x PCI
IDE
2 x UltraDMA 100/66/33
Serial ATA
Built-in ICH5 supports 2 x Serial ATA
Audio
ADI 1980 6-channel audio codec

S/PDIF out interface
LAN
Intel 10/100 Mbps LAN
H/W Monitoring
Winbond 83627THF

2 FAN sensors and 2 Temperatures monitoring and 4 Voltage monitorings
Special Features
Wake on Ring, Lan, USB, Keyboard amp; Mouse

STR (Suspend-to-RAM)

STD (Suspend-to-Disk)

ASUS CrashFree BIOS2

ASUS EZFlash

ASUS Mylogo
Back Panel I/O Ports
1 x Parallel

1 x VGA

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Line In / Line Out / Microphone ports

1 x COM1

1 x RJ45

4 x USB 2.0
Internal I/O Connectors
2 x USB 2.0 connector support additional 4 USB 2.0 ports

S/PDIF out connector

Game/MIDI port connector

CD / AUX audio in

CPU / Chassis FAN connectors

20 pin ATX Power connector

4 pin ATX 12V Power connector

20 Pin Panel connector

10 Pin Intel Front Panel Audio connector
BIOS
2Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI
Industrial Standard
PCI 2.2, USB2.0
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME
Support Disc
Drivers

ASUS PC Probe

Trend Micro PC-cillin 2002 anti-virus software

ASUS LiveUpdate Utility
Accessories
User's manual

1 x UltraDMA 133/100/66 cable

2 x Serial ATA cable

1x FDD cable

I/O shield I/O shield
Form Factor
microATX Form Factor 9.6"x 9.6" (24.3cm x 24.3cm)
