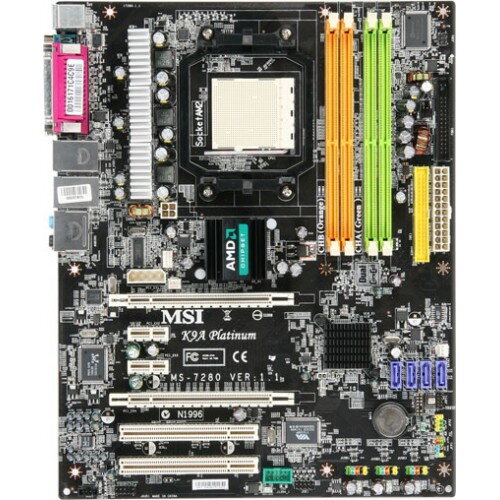

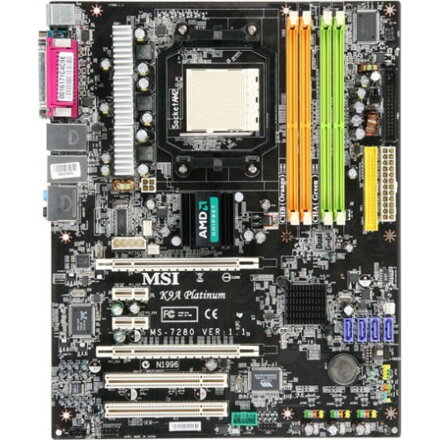

MSI K9A Platinum AMD Socket AM2 740G Micro ATX zakladna doska

Supported CPU

CPU Socket Type

AM2

CPU Type

Athlon 64 X2 / Athlon 64 FX / Athlon 64

FSB

1000MHz Hyper Transport (2000 MT/s)
Chipsets

Chipset

AMD 580X CrossFire

South Bridge

ATI SB600
Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR2 800

Maximum Memory Supported

8GB

Channel Supported

Dual Channel
Expansion Slots

PCI Express x16

2

PCI Express x1

2

PCI Slots

2
Storage Devices

PATA

1 x ATA100 2 Dev. Max

SATA 3Gb/s

4

SATA RAID

0/1/0+1/JBOD
Onboard Video

Onboard Video Chipset

None
Onboard Audio

Audio Chipset

Realtek ALC883

Audio Channels

8 Channels
Onboard LAN

LAN Chipset

Realtek 8110SC

Second LAN Chipset

Realtek 8111B

Max LAN Speed

Dual 10/100/1000Mbps
Rear Panel Ports

PS/2

2

COM

1

LPT

1

USB 1.1/2.0

4 x USB 2.0

IEEE 1394

1 x IEEE 1394a

S/PDIF Out

1 x Optical, 1 x Coaxial

Audio Ports

5 Ports
Internal I/O Connectors

Onboard USB

6 x USB 2.0

Onboard 1394

1 x 1394a
Physical Spec

Form Factor

ATX

Windows Vista

Certified for Windows Vista

Dimensions (W x L)

12.0" x 9.6"

Power Pin

24 Pin
