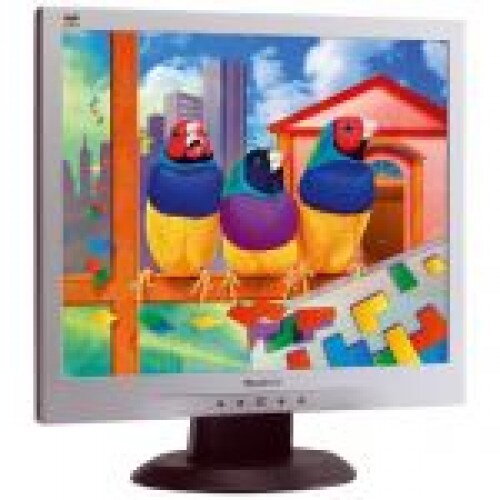

ViewSonic VA903m 19" LCD monitor

LCD
Type
19" TN colour TFT active matrix SXGA LCD
Contrast Ratio
700:1 (typ.)
Viewing Angles
150° horizontal, 135° vertical (at 10:1)

160° horizontal, 150° vertical (at 5:1)
Brightness
300cd/m² (typ.)
Display Area
37.6cm horizontal x 30.1cm vertical; 48.3cm diagonal
Optimum Resolution
1280 x 1024@60Hz
Response Time
5ms (off-on-off) (typ.)
Light Source
Long life, 50000 hrs. (typ.)
Panel Surface
Anti-glare (3H)
Pixel Pitch
0.294mm
Colour Support
16.7M colours (6-bit + 2-bit FRC)
Pixel Clock
135MHz
COMPATIBILITY
PC
VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)
Mac®
Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)
DIMENSIONS
Physical With Stand
416 x 428 x 210
REGULATIONS
TCO’03, CE, CB, GS, Ergo, ISO13406-2 (pixel failure class II), UL/cUL, ENERGY STAR, FCC-B, NOM, GOST-R, BSMI, CCC, (PSB), (C-TICK), Green Mark, WEEE, RoHS
PACKAGE CONTENTS
LCD Monitor, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
AUDIO
Speaker
2 x 1 watt integrated invisible stereo speakers
CONNECTOR
Analogue
15-pin mini D-Sub (attached cable)
Power
3-pin AC plug (CEE22)
Audio (input/output)
3.5mm stereo audio line-in
POWER
Voltage
AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption
lt;35 watt (max.), lt;1 watt in power save mode
CONTROLS
Basic
Power, menu [1], up, down, select [2]
OSD
Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
OPERATING CONDITIONS
Temperature
0°C – 40°C
Humidity
10% – 90% (non-condensing)
WEIGHT
Net With Stand
4.6kg
Gross
5.8kg
VIDEO INPUT
Frequency
Fh: 30 – 82kHz, Fv: 50 – 85Hz
Sync
H/V separated (TTL)
Analogue
RGB analogue (0.7 Vp-p, 75 ohm)
POWER MANAGEMENT
Meets TCO’03 and ENERGY STAR standards
SECURITY
Kensington® security port
WALL MOUNT
VESA FDMI 100mm x 100mm
ERGONOMICS
Tilt
Down 5°, Up 20°
