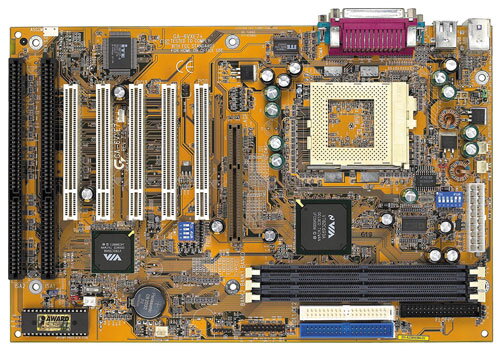

GA-6VXE7+ (rev. 3.0)

CPU
CPU multiplier 3.0~10.5
Socket 370 Intel ® FC-PGA Pentium ® III or other compatible
66/75*/83*/100/112*/124*/133*/140*/150* MHz FSB
AUTO detect CPU voltage
Chipset
North Bridge:
VIA Apollo Pro AGPset
iTE 8671 I/Oset (1Mb/S)
Memory
Supports 8/16/32/64/128/512 MB SDRAM DIMM module
8MB - 1.5GB SDRAM
Supports ECC Type DIMM module (72bits)
3 x 3.3V DIMM slots
Expansion Slots
5 x PCI slots (PCI 2.2 compliant)
1 x AGP support 66/133 MHz speed
2 x ISA
H/W Monitoring
3 Fan Power Speed Detection Connectors
BIOS
AWARD BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinME
IDE#1~#4, SCSI, LS120, ZIP CD-ROM bootable
Supports @BIOS™ Live Update utility
2 Mbit flash ROM
Unique Features
Wake On LAN Header (WOL)
EasyTune ™ 3
Internal/External modem Wake On
Poly fuse for keyboard USB overcurrent protection
Power
Power-off by Windows® 95/98/2000/ME shut down switch
Power-on by switch, keyboard, PS/2 mouse, LAN, RTC(alarm), modem (COM A or B)
Stop CPU Fan during entering suspend mode
ATX power connector
Form Factor
ATX, 4 layers PCB, 305mm x 200mm
I/O
2 x Ultra DMA33/66 Bus Master IDE
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
2 x USB
1 x IrDA TX/RX header
