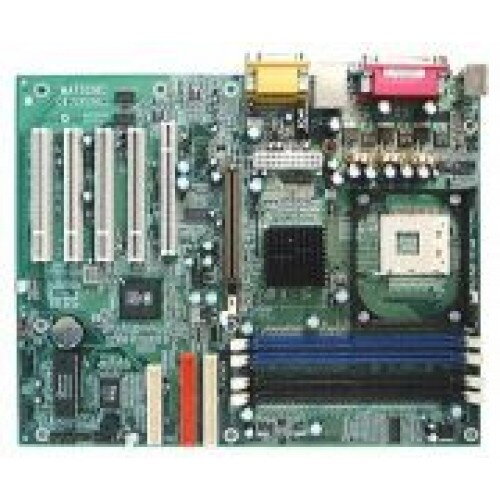

Matsonic MS9317E+(USB) socket 478

Processor
Support Socket 478 for Intel(R) Pentium(R) 4

1.5GHz~2.0GHz (for MS-9317E) 1.5GHz~2.8GHz (for MS-9317E+) or faster Processor
400Mhz (for MS-9317E) and 533Mhz (for MS-9317E+) system interface speed, FSB Front Side Bus
Chipset
SIS 650 chipset (for MS-9317E)
SIS 651 chipset (for MS-9317E+)
MuTIOL Delivering 533MB/s Bandwidth
Memory
Supports two 184-pin DDR DIMM maximum size up to 2GB
Supports two 168-pin SDRAM DIMM maximum size up to 2GB
2 x DDR + 2 x SDR
Support DIMMs of DDR333/PC133
Graphics Adapter Slot
Supports AGP 4x mode
Embedded USB 2.0
Only for MS-9317E+
480 Mbps data capacity
Backwards compatible with USB 1.1
Compliant with Intel’s Enhanced Host Controller
Interface Specification Revision 0.95
Embedded LAN on board
10/100Mbps Fast Ethernet LAN on board
Supports IEEE 802.3 and 802.3u standards
Fully compliant ANSI X3.263 TP-PMD physical sub-layer
Embedded AMR Modem on board
56k AMR modem on board
Support V90/92 communication standard
Analog Modem
BUS ARCHITECTURE
One ACR slot for Soft modem riser only
Four 32-bit PCI slots with full master sharing

controller (Rev 2.2 compliant)
One AGP4x slot
SYSTEM BIOS
2MB Flash Rom on board, provides complete Advances Configuration Power Interface (ACPI) and Legacy PMU
Fully compliant to PC'97 and PC'98 Spec
Embedded 3D Ultra AGP VGA
Integrated Real256TM 2D/3D Graphics Accelerator
Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer
CMI9738/4CH AC 97 CODEC
AC97 Codec on board to provide software

audio solution
4CH DAC, applicable for leading motherboard chipsets.
48 LQFP package(pin to pin compatible with 2-channel CODEC) and 24-lead TSSOP package.
I/O INTERFACE
PS/2 Mini-DIN keyboard and mouse ports
Two Channel USB ports
Two D-SUB 9-pin male serial ports
One D-SUB 25-pin female Printer port
One D-SUB 15-pin female Game/MIDI port
Audio Line-out, Line-in and Mic-in jacks
Ultra DMA 66/100 IDE Ports
Supports two IDE ports up to 4 ATAPI

devices
Supports up to PIO Mode 4 up to 16.6MBps,

Multi Mode 4 up to 100MBps with bus

mastering
FORM FACTOR
304mm x 240mm, 4 Layers
ATX form factor
