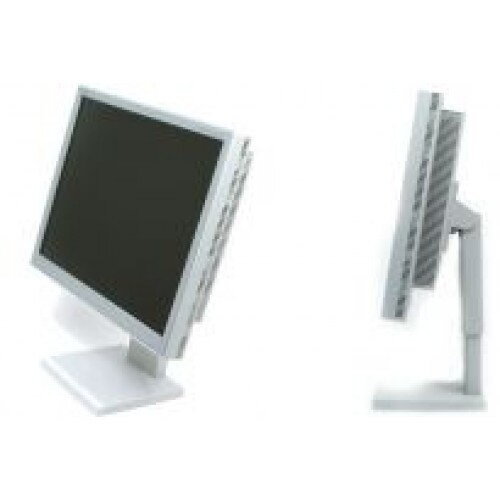

NEC MultiSync LCD1960NX 19" lcd monitor

LCD
Type
Active Matrix TFT LCD Display
Display Area
Diagonal: 19"
Pixel Pitch
0.294 mm
Resolution
Analog: 1280 x 1024 @ 60 Hz to 75 Hz

Digital: 1280 x 1024 @ 60 Hz
Brightness
250 cd/m2
Contrast Ratio
600:1
Viewing Angle
Horizontal: 170°

Vertical: 170°
Response Time
25ms
Cabinet Color
Black
Signal Input
Input Video

Signal
Analog: RGB

Digital: DVI
Video Level
0.3 Vp-p Negative

0.7Vp-p Postive
Frequency
Horizontal: 31.5-81.1 kHz (ANALOG), 31.5-69 kHz (DIGITAL)

Vertical: 56-75 Hz
Sync Type
Separate sync: TTL Level (Positive/Negative)

Composite sync: TTL Level (Positive/Negative)
Input Connectors
15-pin Mini D-sub (x 1)

24-pin DVI-D to 29-pin DVI-I (x 1)
Included Signal

Cable
D-Sub to D-Sub
Power

Requirements
Voltage
AC100-240V
Consumption
On: 38W (typical)

Power Savings Mode: 2W
Operating

Conditions
Temperature
Operating: +41° F to +95° F

Storage: 14° F to +140° F
Humidity
Operating: 30% to 80% RH

Storage: 10% to 85% RH
Misc. Features
Emissions

Standard
FCC Class B

TCO '99
Plug amp; Play
VESA DDC2B

VESA DDC2Bi
Tilt
Up: 30°

Down: -5°
VESA Wallmount Hole Configuration
100mm x 100mm
Dimensions

(H x W x D)
Unit
15.3-19.7" x 16.4" x 7.5" (With Stand)

13.9" x 16.4" x 3.0" (Without Stand)
As Shipped
19.1" x 19.2" x 10.6"
Weight
Unit
17.2 lbs. (With stand)

12.6 lbs. (Without stand)
As Shipped
20 lbs.
System Requirements
PC
All Windows OS
Mac
All Mac OS
