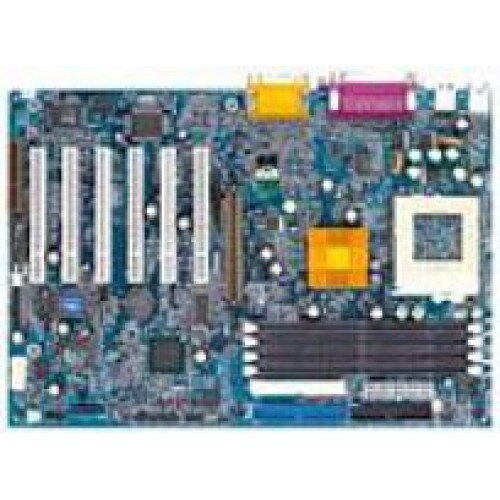

GA-6OXM7E REV:2.0

CPU
Socket 370 Intel ® FC-PGA Pentium ® III or other compatible
Auto/66/100/133 MHz FSB other clocks by Gigabyte EasyTune III Utility
AUTO detect CPU voltage
Chipset
North Bridge:
Intel® 815E AGPset
iTE IT8712F-A I/O health chip
AC'97 Creative CT5880 PCI
Memory
4 x DIMM slots
Supports 32/64/128/256/512 MB SDRAM modules
32MB - 512MB
Expansion Slots
6 x PCI slots (PCI 2.2 compliant)
1 x AGP 2x/4x mode AGP card or supports AIMM
1 x CNR (Communication Network Riser) slot
H/W Monitoring
Auto speed down and Alarm when CPU overheat or Fan failure (OS independent and driverless)
H/W detect +/-5V, +/-12V, CPU voltage CMOS battery Status
System Health Status detect report by BIOS, LDCM®
3 Fan Power Speed Detection Connectors; Case open detection
BIOS
IDE#1~#4, SCSI, LS120, ZIP CD-ROM bootable
Supports DualBIOS™
BIOS with enhanced ACPI feature for PC99/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) Anti-Virus functions
4 Mbit flash ROM
Auto-detect report system health status
Unique Features
Wake-on-LAN (WOL),Wake-On-Ring (WOR)
STR (Suspend-To-RAM)
EasyTune ™ 3
Poly fuse for keyboard, USB game overcurrent protection
Bundle Software
GIGABYTE Windows Utility Manager
Power
Suspend/Wake-on by ACPI APM device
Power-on by Keyboard, PS/2 Mouse, LAN, RTC, Modem Switch
Supports USB device wake-up
Power-off by Windows® 95/98/2000 shut down and switch
ATX power connector
Form Factor
ATX, 4 layers PCB, 305mm x 215mm
Driver
Creative PCI audio driver
Intel® 815 patch utility for Windows® 95/98
Intel® LDCM® Utility
I/O
2 x Ultra DMA 33/66/100 IDE
1 x FDD, 2 x COM (1 by cable), 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC
Provides one SPDIF connector (Optional)
2 x USB ports on board, 2 x USB ports by cable (optional)
1 x SCR (Smart Card Reader) connector
IrDA header ready
1 x IA 20 pin port (optional)
Front panel audio connector
