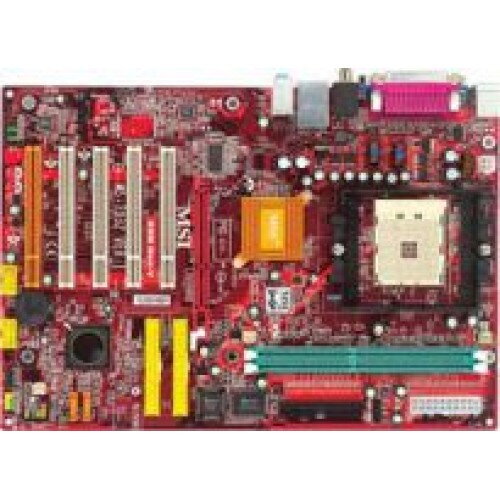

MSI K8T Neo-V MS-7032 VER:1 socket 754 VIA K8T800 zakladna doska

CPU • Supports 64-bit AMD® Athlon™ 64 amp; Sempron processor (Socket 754)• Athlon 64: 2800+, 3000+, 3200+, 3400+, 3700+, Sempron 3100+Please refer to CPU Support for compatible CPU; the above description is for reference only.Chipset • VIA® K8T800 Chipset- HyperTransport™ connection to AMD® Athlon™ 64 processor- 8 or 16 bit control/address/data transfer both directions- 800/600/400/200MHz "Double Data Rate" operation both direction- AGP v3.0 compliant with 8x transfer mode
• VIA® VT8237 Chipset- Integrated Faster Ethernet LPC- Integrated Hardware Sound Blaster/Direct Sound AC97 audio- Ultra DMA 66/100/133 master mode PCI EIDE controller- Supports 2 Serial ATA RAID 0/1- Supports 8 USB2.0 ports- ACPI
Main Memory
• Supports DDR266/333/400 DDR DRAM for two 184-pin DDR DIMMs• Supports a maximum memory size of 2GBMemory Population RulesInstall at least one DIMM module on the slots. Each DIMM slot supports up to a maximum size of 1GB. Users can install either single- or double-sided modules to meet their own needs. Please note that each DIMM can work respectively for single-channel DDR, but there are some rules while using single-channel DDR. Memory modules can be installed in any combination as follows: SlotMemory ModuleTotal MemoryDIMM 1Single/Double side64MB~1GBDIMM 2Single/Double side64MB~1GBMaximum System Memory Supported64MB~2GB DIMM 1DIMM 2Max. SpeedSingle-DDR 400-SingleDDR 400SingleSingleDDR 400SingleDoubleDDR 400DoubleSingleDDR 400DoubleDoubleDDR 333
Slots • One AGP 8x slot- AGP 3.0 specification compliant • Five 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE/SATA
• An IDE controller on the VIA® VT8237 chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes- Can connect up to 4 IDE devices
• Serial ATA/150 controller integrated by VIA® VT8237- Up ot 150MB/s transfer rate- Can connect up to 2 serial ATA devices- Supports RAID 0 or RAID 1
Audio
• 6 channels software audio codec Realtek® ALC655- Compliance with AC97 v2.3 Spec.- Meet PC2001 audio performance requirement.
LAN
• Realtek® 8201CL LAN PHY- Supports 10/100Mb/s auto-negotiation operation
On-Board Peripherals On-Board Peripherals include:- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes- 1 serial port (COMA)- 1 parallel port supports SPP/EPP/ECP mode- 1 Audio port- 1 D-Bracket2 pinheader- 1 RJ-45 LAN Jack- 8 USB Ports (Front x 4 / Rear x 4)
BIOS• The motherboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension• 30.5cm(L) x 21.0cm(W) ATX Form FactorMounting• 6 mounting holes.
