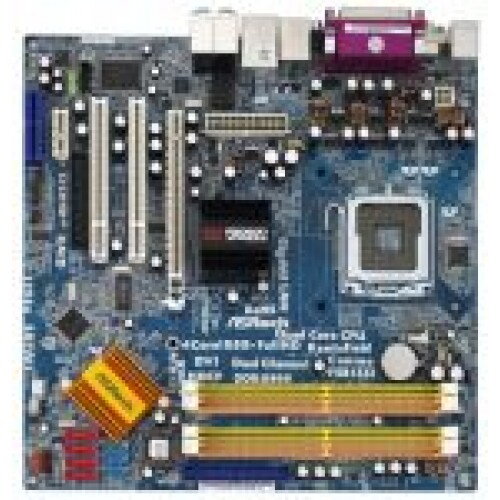

ASRock 4Core1333-FullHD LGA775

General
CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Quad Core Yorkfield* and Dual Core Wolfdale* processors

- Compatible with all FSB1333**/1066/800/533MHz CPUs

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

* The CPU with "*" mark are only supported with PCB version 1.03 or above.



** FSB1333-CPU will operate in overclocking mode.
Chipset
- Northbridge: ATI™ RS600

- Southbridge: ATI™ SB600
Memory
- Dual Channel DDR2 memory technology

- 4 x DDR2 DIMM slots

- Supports DDRII800/667/533 non-ECC, un-buffered memory

- Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- Integrated ATI™ X1250 graphics

- DX9.0 VGA, Pixel Shader 2.0

- Max. shared memory 512MB

- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers

- Supports HDCP function with DVI-D port

- Supports 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

- Chipset embedded HDMI Audio
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111B

- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

- 1 x HDMR slot
Connector
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 10), NCQ, AHCI and "Hot Plug" functions

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x IEEE 1394 header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O
ASRock DVI_1394 I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x IEEE 1394 Port

- 1 x RJ-45 Port

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster
- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 133 Cables

- 1 x SATA Data Cable (optional)

- 1 x SATA 1 to 1 Power Cable (optional)

- 1 x COM Port Bracket
Hardware Monitor
- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
