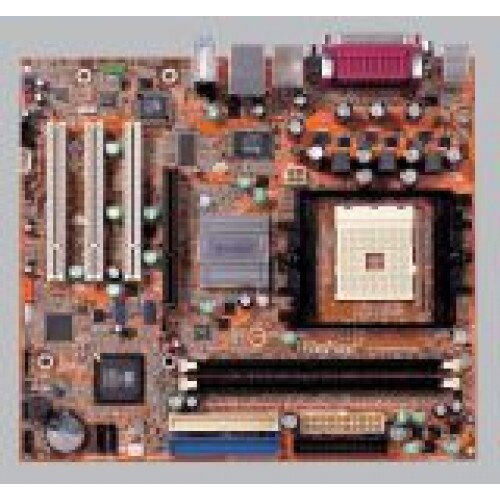

Foxconn 760GXK8MC-RSH socket 754

Processor:
Socket 754 for AMD Athlon™ 64 / Sempron™ processors
Chipset:
SiS 760GX + SiS 964 – MuTIOL® 1GB/s bandwidth HyperStreaming™ Engine (HSE)
Front Side Bus:
Up to 1600MT/s HyperTransport™
Memory:
2 x 184-pin DIMM sockets up to 2GB DDR400/333/266 DDR DRAM
VGA on Die:
Integrated Ultra256 2D/3D Graphics
Expansion Slots:
1 AGP slot supports 8X / 4X modes and 3 PCI slots
IDE:
2 UltraDMA 133 - supports up to 4 devices
Serial ATA(SATA)/RAID:
Supports 2 Serial ATA devices, RAID 0, RAID 1, JBOD
Audio:
ADI AD1888; 5.1 channel audio
LAN:
RTL8201BL; 10/100 PHY
IEEE1394:
N/A
Back Panel I/O Ports:
1 x PS/2 mouse

1 x line-in / line-out / MIC ports

1 x PS/2 keyboard

1 x parallel

1 x RJ45

1 x COM1 port

4 x USB 2.0

1x VGA port
Internal I/O Connectors:
2 x USB 2.0 headers support 4 ports

1 x S/PDIF header out

1 x COM2 header
BIOS Features:
4Mb flash ROM w/ LAN Boot, PnP, DMI 2.0, WfM 2.0, SMBIOS 2.3, ACPI 1.0b
Support CD:
Chipset Drivers, DirectX 9.0, RAID Driver, VGA Driver, USB 2.0 Driver, Audio Driver, Network Driver, Adobe Reader 6.0, SuperUtilities, Norton Internet Security, Motherboard Support CD
Standards/Manageability:
PCI 2.3, USB2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface, PC2001
Special Features:
Wake on ring, LAN, USB, keyboard amp; mouse, STR (Suspend-to-Ram), STD (Suspend-to-Disk), SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperSpeed by BIOS, SuperStep, SuperLogo, SuperUpdate by CD Driver
Form Factor:
Micro ATX (9.6” x 8.6”)
