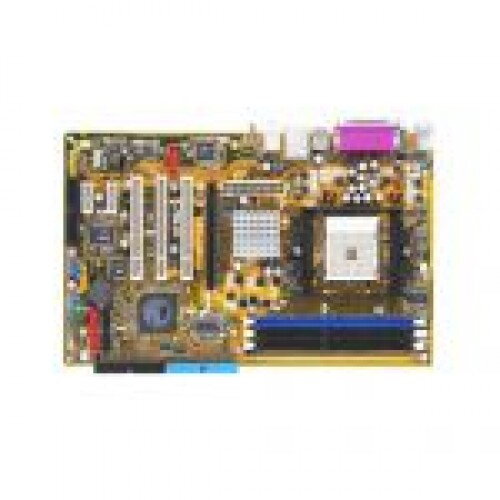

ASUS K8V-XE Socket 754 základná doska

Specifications
CPU
Socket 754 for AMD Athlon 64 / Sempron CPU

AMD 64 architecture enables simultaneous 32-bit and 64-bit computing

AMD Cool'n'Quiet Technology
Chipset
VIA K8T890

VIA VT8251
Front Side Bus
1GHz / 800MHz
Memory
3xDIMM, max.3GB DDR400/333/266

ECC/non-ECC unbuffered memory
Expansion Slots
1 x PCI Express X16

2 x PCI E X1

3 x PCI
Storage/RAID
JMB 363 Controller support :

SATA RAID 0, 1 and JBOD (by 1x External SATA amp; 1x Internal SATA)



VIA VT8251 Southbridge support:

4 x Serial ATA (3Gb/s) support RAID 0, 1, 0+1(10), JBOD

2 x UltraDMA 133/100/66
Audio
ALC660 6-ch Azalia CODEC

Jack Sensing and Enumeration

S/PDIF out interface
LAN
Realtek RTL8201CL-LF 10/100M LAN
Overclocking Features
CPU Multiplier

SFS (1MHz FSB Adjustment), up to 300 MHz

C.P.R.(CPU Parameter Recall)

EZ Flash
USB
8 USB 2.0 ports
Special Features
C.P.R. (CPU Parameter Recall)

CrashFree BIOS2

MyLogo

EZ Flash
Back Panel I/O Ports
1 x Parallel

1 x External Serial ATA II

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Audio I/O

1 x RJ45

1 x S/PDIF Out

4 x USB

1 x COM
Internal I/O Connectors
2 x USB connector supports additional 4 USB ports

CPU / Chassis Fan connectors

24-pin EPS 12V Power connector

4-pin ATX 12V Power connector

IDE LED connector, power LED connector

SPDIF out connector

CD audio in

GAME/MIDI connector

Azalia Analog Front panel audio connector
BIOS
4 Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS CrashFree BIOS 2, ASUS MyLogo
Manageability
WOL by PME, WOR by PME, WOR by Ring
Support Disc
Drivers

ASUS PC Probe II

ASUS LiveUpdate

Anti-Virus Software
Accessories
Quick Start Guide

User's Manual

1 x UltraDMA 133/100/66 cable

1 x FDD cable

1 x I/O shield

1 x SATA Cable Kit (SATA/Power)
Form Factor
ATX 12"x 7.6" (30.5 cm x 19 cm)
