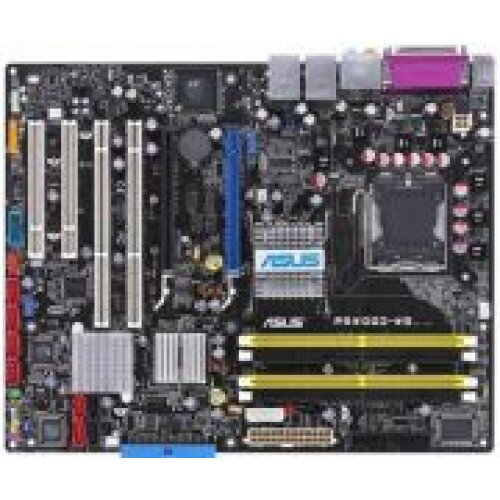

ASUS P5WDG2-WS Workstation motherboard, REV.1.02G

BIOS
AMI
Chipset
Intel 975X + ICH7R
CPU Interface
Socket 775
Max. CPU Support
Intel Celeron D 355

Intel Pentium 4 3.80F GHz

Intel Pentium 4 571

Intel Pentium 4 672

Intel Pentium D 840

Intel Pentium D 950

Intel Pentium Extreme 955
Front Side Bus
800MHz

1066MHz
RAM Technology
DDR2 (Dual Channel)

ECC / non-ECC un-buffered
RAM Slots
4 x 240-Pin
RAM Speeds
DDR2 533

DDR2 667
Max. Memory Support
8GB
Expansion Slots
2 x PCI Express x16

2 x PCI-X

2 x 32-bit PCI 2.2
Storage Controller(s)
1 x P-ATA/133

4 x S-ATA/300

RAID 0

RAID 1

RAID 5

RAID 10

Marvell 88SE6141:

4 x S-ATA/300

RAID 0

RAID 1

RAID 10

JBOD
On-Board LAN
2 x 10/100/1000

Marvell 88E8066/8062
On-Board Audio
8-channel

Realtek ALC882
On-Board Video
Back Panel I/O Ports
1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Coaxial S/PDIF Output

1 x Optical S/PDIF Output

1 x Parallel

1 x IEEE1394

6 x Audio

4 x USB2.0

2 x LAN
Internal I/O Connectors
1 x 24-pin ATX Power

1 x 8-pin ATX 12v Power

1 x 4-pin EZ Plug Power

1 x COM

1 x Game

1 x Audio

1 x CD Audio

2 x USB2.0

3 x FAN
Form Factor
ATX

305mm x 245mm
Special Features
ATI CrossFire

Supports Intel Dual/Single-Core 65nm Processors

Intel MPT (Intel Memory Pipeline Technology)

PCI-X Architecture

PCI Express Architecture

Stack Cool 2

8-Phase Power Design

AI Quiet

ASUS Hyper Path3

AI NOS

PEG Link

Precision Tweaker

Theatre-Level Audio
