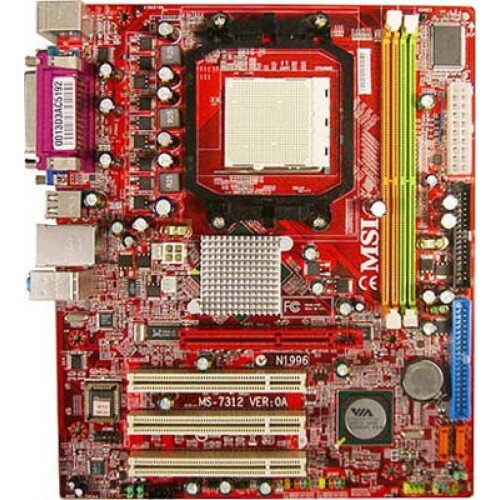

MSI K9MM-V

CPU • AMD® Athlon 64 X2, Athlon 64 and Sempron in the Socket AM2 package. Please refer to CPU Support for compatible CPU; the above description is for reference only.FSB• HyperTransport supporting speed up to 800MHz (1600MT/s)Chipset • VIA® K8M800 and VT8237R Plus Chipset
Main Memory
• Supports Dual DDR2 533/667/800- 2 DDR2 DIMMs (240pin / 1.8V)- Supports a maximum memory size up to 2GB.
Slots • One AGP 8x slot.• Three PCI slots (support 3.3v/5v PCI bus interface). On-Board IDE
• One IDE port by VIA® VT8237R Plus - Supports Ultra DMA 66/100/133 mode- Supports PIO, Bus Master operation mode
On-Board SATA
• Two SATA ports by VIA® VT8237R Plus - Supports storage and data transfers at up to 1.5Gb/s
(For Windows 98 system, please set "RAID" in SATA Mode field of BIOS setting menu by selecting Integrated Peripherals VIA OnChip IDE Device/SATA Mode.) MSI Reminds You...• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.
Audio• Chipset integrated by Realtek® ALC655- 6-channel audio-out- Compliant with AC97 v2.3 Spec
LAN • Supports 10/100 Fast Ethernet by Realtek RTL8201CL
Internal I/O Connectors - ATX 24-pin power connector - 4-pin ATX 12V power connector - CPU / System FAN connectors - CD-in connector - Serial port connector - 1 x Floppy disk drive connector - 2 x SATA connectors - 1 x ATA133 HD connector - 2 x USB 2.0 connector support additional 4 ports - Front panel connector - Front panel audio connector - Chassis intrusion switch connector - Clear CMOS JumperMSI Reminds You...• The floppy disk cable will be optional.
Back Panel I/O Ports - 1 x Parallel - 1 x PS/2 Keyboard - 1 x PS/2 Mouse - 1 x Serial port - 1 x VGA port - 1 x 3-in-1 Audio I/O port - 4 x USB 2.0 - 1 x RJ45 LAN Jack
Dimension• 24.5cm(L) x 20.5cm(W) Micro-ATX Form FactorMounting• 6 mounting holes.
