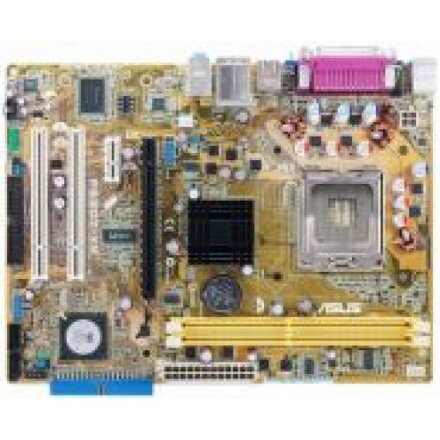

ASUS P5SD2-VM

CPU
LGA775 socket for Intel® Coreâ¢2 Duo/Pentium D/Pentium 4/Celeron D Processors

Support Intel® next generation 45nm CPU

Support Intel® EIST/Hyper-Threading Technology
Chipset
SIS 672

SIS 968
Front Side Bus
1066O.C/800/533 MHz
Memory
2 x 240-pin DIMM sockets support max. 4GB DDR2 667/533 non-ECC unbuffered memory

*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCI-E x 16

1 x PCI-E x 1

2 x PCI
VGA
SIS Mirage 3+ Integrated Graphics, up to 256MB shared memory
Storage
SIS 968 South Bridge:

-1 x UltraDMA 133/100/66/33

- 2 x SATA 3Gb/s with RAID 0 and RAID 1 function
LAN
Phy 10/100 LAN
Audio
High Definition Audio, Realtek ALC662 6-channel CODEC

Support Jack-detect and SPIDF-OUT interface
USB
Max. 8 USB2.0 ports (4 on back I/O,4 on board)
Special Features
CrashFree BIOS 2

Q-FAN

EZ Flash

MyLogo
Back Panel I/O Ports
1 x Parallel

1 x COM Port

1 x VGA Port

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x RJ45

4 x USB 2.0/1.1

6-Channel Audio I/O
Internal I/O Connectors
1 x Floppy connector

1 x IDE connector for two devices

2 x USB 2.0 connectors for 4 additional USB 2.0 ports

1 x CPU fan connector

1 x Chassis fan connector

1 x Chassis intrusion connector

1 x S/PDIF out connector

1 x 4-pin internal speaker connector

1 x CD audio-in connector

1 x Front panel Audio connector

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x System panel connector
BIOS
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI3.0, SM BIOS2.4
Manageability
WOL by PME, WOR by PME, Chassis Intrusion, PXE
O/S Compatibility
Windows Vista/XP/2003 sever/2000
Accessories
1 x SATA cable

1 x SATA power cable

1 x UltraDMA 133/100/66 cable

1 x FDD cable

1 x I/O Shield

1 x User Guide
Support Disc
Drivers

ASUS PC Probe 2

ASUS LiveUpdate Utility

Anti-virus software (OEM version)
Form Factor
mATX Form Factor, 9.6âx 7.4â(24.4cm x 18.8cm)
