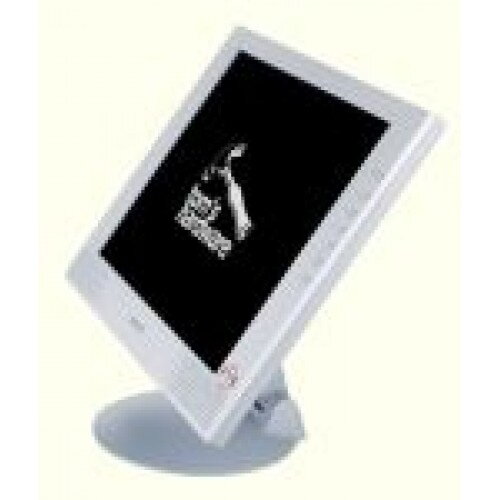

Model SDM-M51 and SDM-M51/B Power Requirements
Stereo Speakers
100-220VAC, 50/60Hz
Color Two-Tone Gray (SDM-M51)
Black (SDM-M51/B) Power Management:
Normal Operation 22 W max. (w/ AC adapter)
Viewable Image Size
Active Off 2 W max.
Diagonal 15.1â
Power Off 2 W max.
Horizontal 12.1â
Vertical 9.1â Regulation and Standard Compliance
Safety Regulations: UL1950, CSA C22.2 No.950
LCD Panel
EN60950, CPA (SISAR)
LCD Type a-Si TFT Active Matrix
⢠Multi-media applications
Hong Kong, CB IEC60950
Native Resolution 1024 x 768
EMKO's,
⢠Internet Content Color Filters RGB Vertical Stripes
Human Factor: ISO 13406-2, ISO 9241-3,7,8
Pixel Pitch 0.30 mm
CE mark: EN55022/55024
Screen Treatment Anti-Glare/Hard Coating
EN61000-3-2/-3
Colors 16.19 Million (approx.)
EMI FCC Class B
Zero Footprint Design Maximum Resolutions 1024 x 768 VCCI Class B
IC Class B
200 cd/m2
Luminance
AS/NZS (C-Tick)
Contrast Ratio 300:1
ELF/VLF MPR-II (TUV Ergonomic Mark)
Viewing Angle TCO 99 (SDM-M51)
Horizontal 140 TCO 95 (SDM-M51/B)
Vertical 120 Power Management International Energy Star
Designed for PC99, Windows® 95,98,2000
Scan Range
Windows NT®,
Horizontal 28kHz - 64kHz
Macintosh® Compatible
Vertical 48Hz - 75Hz
⢠Adjustible and removable tilt base
Plug and Play DDC-1, DDC-2B, DDC-2Bi
Preset Timings
⢠Arm or wall mounting
Factory 13 Tilt Range 0° to +70°
User Adj 18
Front Panel User Controls
Response Time Power Switch, Menu Button
4 Port USB Hub
Space-Saving Design Rise Time 20 ms Brightness, Contrast Button
Fall Time 30 ms Volume
Color Temperature Presets On Screen Display Controls
5000, 6500, 9300 (default) Kelvin Phase, Pitch, Image Center
Color Temperature, Gamma, Backlight Control
Video Signal Inputs
Option (OSD Position)
Analog
Power Saving Delay
Video Input Analog RGB 0.7 Vp-p ± 5%,
Multi-Language (Eng., Fre., Spa., Ital., Ger.)
Positive, 75 ohms (typ)
Menu Lock, Volume, Reset
Sync Input Separate HD/VD
TTL, Polarity Free Operating Conditions
Polarity free, Ext. Composite Temperature: 41° to 95° F (5° to 35° C)
⢠Maximize desktop area
Sync on Grn 0.3 Vp-p ± 10%, Negative Relative Humidity: 10% to 80% (Non-Condensing)
Input Connectors Storage Conditions
D-sub HD15 Temperature: -4° to 140°F (-20° to 60°C)
Relative Humidity: 5% to 95% (Non-Condensing)
Audio Inputs / Outputs
Input Connector Stereo Minijack Supplied Accessories
Headphone Connector Stereo Minijack AC adapter,AC Power Cord
Audio Input 0.5V RMS User's Manual (Eng., Fre., Spa., Ital., Ger.)
Impedance 47k ohms Rear Cover, Rubber Pads
Headphone Output 1W x 1W Windows® Monitor Information Disk/Utility Disk
Speaker Output 1W x 1W Macintosh® Utility Disk
MAC Adapter
Display Dimensions (WxHxD)
HD15 Video Signal Cable
15.2â x 13.6â x 7.1â
