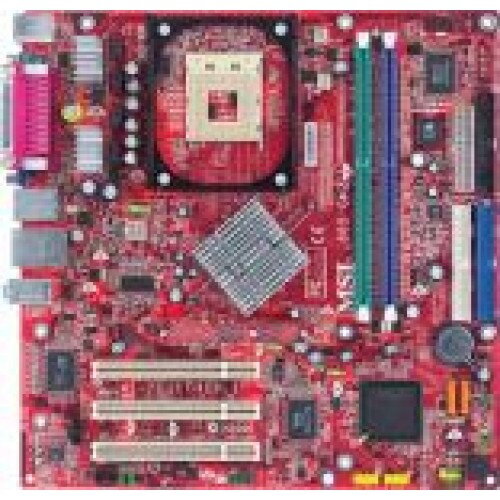

MSI 865GVM2-LS 478 Intel 865GV Micro ATX

Specifications


CPU
• Supports Intel® P4 Northwood/Prescott processors.

• FSB 400(Northwood only)/533/800MHz

• Supports up 3.4GHz and higher speed P4 processor.

Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset
• Intel® 865GV Chipset

- Supports 800/533/400MHz Intel NetBurst micro-architecture bus.

- Integrated Intel Extreme Graphics 2 controller.

- Supports PC2100/PC2700 /PC3200 memory.



• Intel® ICH5 Chipset

- AC'97 2.3 interface

- 8 USB 2.0/1.1 ports

- 2 channel Ultra ATA/100 Bus Master IDE controller

- SMBus 2.0 support

- 2 serial ATA Host Controllers



Main Memory



• Supports dual-channel function.

• Supports 128Mb, 256Mb or 512Mb DDR technologies.

• Supports 2 DDR 333/400 memory modules.

• Supports up to 2GB memory size without ECC.



Slots



• Three PCI 2.2 32-bit Master PCI Bus slots.

- Supports 3.3v/5v PCI bus Interface.



On-Board IDE / Serial ATA



• Dual Ultra DMA 66/100 IDE controllers integrated in ICH5

- Supports PIO, Bus Master operation modes.

- Can connect up to four Ultra ATA drives.



• Serial ATA/150 controller integrated in ICH5

- Up to 150MB/sec transfer speeds.

- Can connect up to two Serial ATA drives.



Audio



• AC'97 link controller integrated in ICH5

• 6 channels software audio codec Realtek ALC655

- Compliance with AC97 v2.2 Spec.

- Meet PC2001 audio performance requirement.


LAN



• Realtek 8100C

- Integrated Fast Ethernet MAC and PHY in one chip

- Supports 10/100Mb/s autonegotiation operation

- Compliant with PCI v2.2, and LAN on Motherboard (LOM) standard



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 1 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port and 1 VGA port

- 1 serial port pin header (COM2)

- 1 parallel port supports SPP/EPP/ECP mode

- 8 USB 2.0/1.1 ports (Rear x 4 / Front x 4)

- 1 Line-In/Line-Out/Mic

- 1 RJ45 connector



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 24.5 cm(L) x 24.5 cm(W) Micro-ATX Form Factor
Mounting
• 8 mounting holes.
