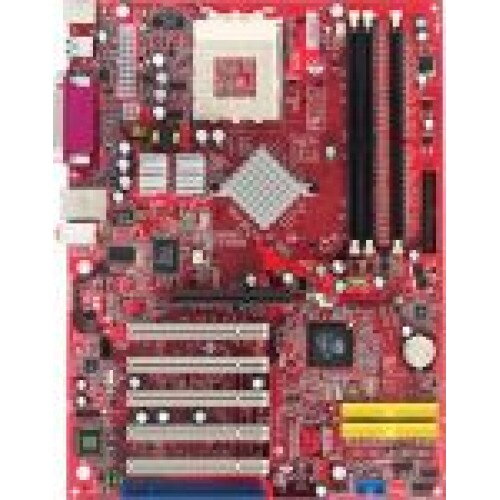

MSI K7N2 Socket A / 462 základná doska

Specifications
CPU
• Supports Socket A for AMD® Athlon™ XP/Athlon™/

Duron™ processors @FSB 100/133/166



• Supports up to Athlon™ XP 3000+ processor or higher
Chipset
• NVIDIA® nForce2 SPP Chipset

- Supports DDR200/266/333/400

- Supports external AGP 4X/8X



• NVIDIA® nForce2 MCP2 Chipset

- AC97 Interface supporting up to two concurrent codecs

- Ultra ATA133 for the fastest hard disk throughput

- USB 2.0 EHCI/1.1 OHCI controller



FSB
• 100/133/166(200/266/333)MHz clocks are supported.



Main Memory



• Supports six memory banks using three 184-pin DDR DIMMs

• Support single channel PC3200/2700/2100/1600 DDR DRAMs

• Supports both 64-bit and 128-bit DDR DRAM

• Maximum memory size of 3GB



NOTE: nForce2 only NOT support x4 memory device. 1GB can be made by other density of dram chip such as x 8, x16.



Slots



• One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot

• Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

• One ACR (Advanced Communication Riser) slot



On-Board IDE



• An IDE controller on the MCP2/MCP2-T chipset provides IDE HDD/CDROM with PIO,

Bus Master and Ultra DMA133/100/66 operation modes

• Can connect up to four IDE devices



Audio



• Realtek ALC650 6-channel audio



Network



• Chipset integrated 10/100 Base-T Ethernet/Fast Ethernet



On-Board Peripherals
On-Board Peripherals include:

- One floppy port that supports two FDD with 360KB, 720KB, 1.44MB and 2.88MB

- 1 serial port

- 1 parallel port supports SPP/EPP/ECP mode

- 3 audio ports in vertical

- 1 Bluetooth pin header (Optional)

- 6 USB ports (Rear x 4 / Front x 2)

- 1 RJ-45 jack



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices

and expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface (DMI) function which records

your mainboard specifications.



Dimension
• 30.5 cm(L) x 23 cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
