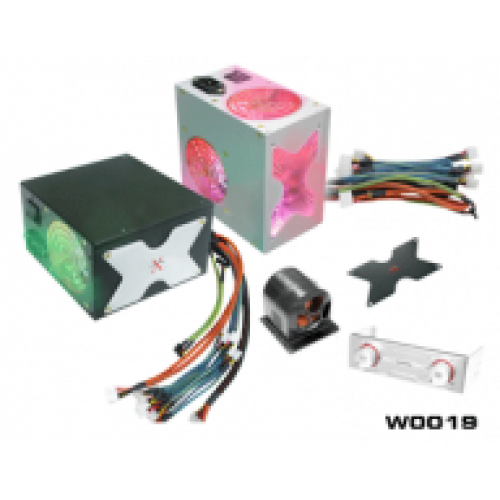

Thermaltake Purepower 550W

P/N
W0019
Fan
Dual Fan:
1. 8025mm, Two Ball Bearing,

Temp. Auto Control

1300 rpm at 25C ~

4800 rpm at 90C
2. 8015mm, Ball Bearing, 2400rpm
Maximum Power
480 Watts
Noise
17 dBA at 1300 rpm,
45 dBA at 4800 rpm
Switches
ATX Logic on-off additional

power rocker switch
P. G. Signal
100-500ms
PFC (Power Factor Correction)
Active PFC
Over Voltage Protection recycle AC to reset
+5V trip point lt; +6.8V
+3.3V trip point lt; +4.5V
+12V trip point lt;+15.6V
Color
Black color painted
Dimension
15cm(L)x14cm(W)x8.6cm(H)
Net Weight
2.5kg
Recommended application
control Blower for Case fan
control power fan
Case Fan Specifications

Fan Type
Blower Fan
Air Pressure
1.1 ~ 7.5mmH2O
Fan Dimension
80x80x70 mm
Air Flow
10.7 ~ 25.0CFM
Rated Voltage
12V
Noise
21.0 ~ 41.0 dBA
Started Voltage
7V
Bearing Type
2-Ball Bearing
Rated Current
0.07 ~ 0.45 A
Life Expectation
75,000 Hours
Power Input
0.84 ~ 5.40 W
Connector
3 Pin
FAN Speed
2100 ~ 4500 10% RPM
