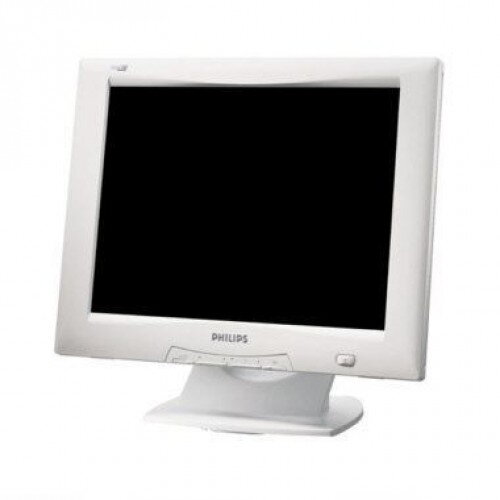

Philips 150BI 15" LCD monitor

15" TFT LCD XGA monitor
Technical Specifications
LCD panel
â¢
â¢
â¢
â¢
Type
Screen size
Pixel pitch
LCD panel type
⢠Effective viewing area
⢠Display colors
TFT LCD
15 inch / 38.1 cm
0.297 x 0.297mm
1024 x 768 pixels,
R.G.B vertical stripe
Anti-glare polarizer, hard coated
304.1 x 228.1mm
8 bits interface (16M colors)
Scanning
⢠Vertical refresh rate
⢠Horizontal frequency
56~76 Hz
30~61 KHz
Video
⢠Video dot rate
⢠Input impedance
- video
- Sync
⢠Input signal levels
⢠Sync input signal
⢠Sync polarities
⢠Video interface
Contrast ratio
Brightness
Peak contrast angle
White chromaticity
⢠Viewing angle
(C/R gt;5)
⢠Response time
Maximum
Recommended
14 user definable modes
14 factory preset modes:
300 (typ.)
200 cd/m2 (typ.)
6 o'clock
x: 0.281 y: 0.311 (at 9300°K)
x: 0.312 y: 0.338 (at 6500°K)
Upper ⥠50°(typ.)
Lower ⥠60°(typ.)
Left
⥠75°(typ.)
Right
⥠75°(typ.)
â¤45 ms (typ.)
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1024x768 at 75Hz
1024x768 at 60Hz
H.freq
(KHz)
31.5
31.5
31.5
35.0
37.8
37.5
35.2
37.9
48.0
46.9
49.7
48.4
56.5
60.0
Power management
Complies with EPA Energy Star and NUTEK specifications
⢠Typical operation
23W (typical)
⢠Sleep mode
3W
Low-emission characteristics
⢠Complies with MPR-II and TCO â99 specifications
⢠Front
75 ohm
2K ohm
0.7 Vpp
Separate sync
Composite sync
Sync on green
Positive and negative
Analog (D-Sub) input only
Resolution amp; preset modes
â¢
â¢
â¢
â¢
⢠Display data channel DDC 2B (VESA)
⢠Microsoft® Windows® 95/98/ Me amp; 2000 compatible
Monitor controls and functions
80 MHz
Optical characteristics
â¢
â¢
â¢
â¢
Plug and play compatibility
V.freq
(Hz)
70
70
60
67
73
75
56
60
72
75
75
60
70
75
(Interlace mode is not applicable)
We recommend using 1024 x 768 at 60Hz non-interlaced mode for the best picture
quality
As an Energy Star partner, Philips has determined that this product meets the Energy
Star guidelines for energy efficiency.
Microsoft and Windows are registered trademarks of Microsoft Corporation
Macintosh is a registered trademark of Apple Computer, Inc.
⢠LED indicator
Power on/off
- Tact Switch
OSD (OK)
- Tact Switch
Auto
- Tact Switch
Up/Down (Brightness) - Tact Switch
Left / Right
- Tact Switch
Green
power on
Amber
stand by/sleep mode
Flashing Green
new mode
Connections and cables
⢠Connections
- Video
- DC output
- Power
⢠Cables
15-pin D-sub (analog)
12V, 6.5mm DC connector
IEC/CEE-22 type male power inlet
on monitor body
D-Sub video cable, Power cord
User options Accessories (sold separately)
⢠USB Hub
- 1 Up stream port
- 4 Down stream ports
- Self-powered
- Digital communication speed up to 12Mbs
⢠Protective cover
⢠Multimedia base
⢠Ergo base
Regulatory approvals
â¢
â¢
â¢
â¢
â¢
â¢
â¢
TUV/GS,TUV-Ergo
FCC-B, UL, CSA
SEMKO
MPR-II Low Emission
CE Mark
NUTEK, Energy Star
TCO â99
Physical specifications
â¢
â¢
â¢
â¢
â¢
â¢
â¢
â¢
â¢
Dimension (WxHxD)
Tilt / Swivel
Weight
Power supply
Power consumption
Temperature (operating)
Temperature (storage)
Relative humidity
System MTBF
380 x 360 x 165 mm (incl. Pedestal)
-5°~25° / ±175°
5.0 Kg
100 â 240 VAC, 50/60 Hz
23 W* (typ.)
+5°C to +35°C
-20°C to +60°C
20% to 80%
50K hrs (excluding CCFL 40K hrs)
