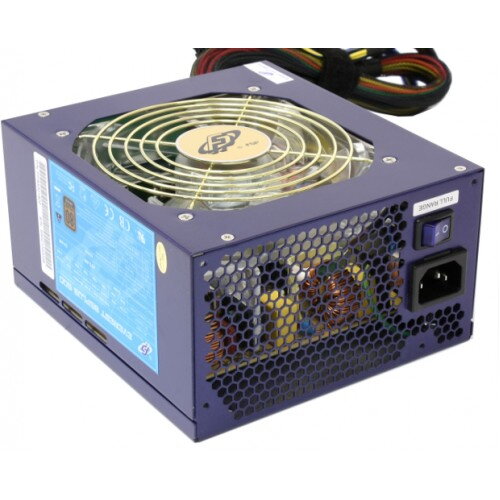

FSP Group EVEREST 80PLUS 500 500W ATX12V / EPS12V SLI 80 PLUS Certified Modular Active PFC

Compliant with Intel Core 2 Extreme amp;AMD Athlon 64,Phenom series

ATX 12V V2.2 ready amp; EPS 12V V2. 91

4-Channel 12V Rails Design

Meets 80PLUS

High Efficiency gt;85%

Supports NVIDIA amp; ATI VGA Card

Supports SATA power-connector

Environmentally Friendly PSU with Active PFC

Energy Saving on Standby Modelt;1W

120mm Variable Speed Fan with Ultra Low Noise

Super Low Nosie 21 dBlt;20% loading (Silent Guard)

Full Range Input with Complete Protection (OVP;OCP;SCP)

True Total Power

Specifications
Efficiency 85%

Input Voltage 100-240 VAC

Frequency 50Hz - 60Hz

PFC Active

Power Provided 500W

Over-Current Protection V

Over-Voltage Protection V

Short-Circuit Protection V

Line Type Main connector 20+4PIN

4Pin+12V Power Connector 4PIN/8PIN

4Pin Floppy Connector 1

S-ATA Connector 5

4Pin Connector 6

PCI-Express Connector 6PIN,6+2PIN

Case Color BLUE

Chassis Fan 120mm

Noise lt;21 dBA

Form Factor ATX 12V 2.2

Safety Approval UL, CSA, TUV, CB, CE, FCC, VDE

Dimensions(LxWxH)mm 165*150*86
