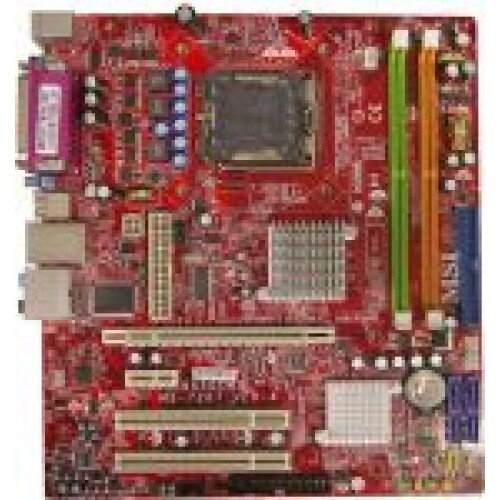

MSI 945GCM5-F V2 LGA775 mainboard

CPU

• Supports Socket 775 for Intel® Core 2 Duo, P4 5XX, 6XX, Pentium D 8XX, 9XX and Celeron D processors.

• Supports FSB 800/533MHz.

• Supports EIST technology.

• Supports Intel® Hyper-Threading technology.

• Supports Intel® Dual Core Technology to 800MHz and up.

Please refer to CPU Support for compatible CPU; the above description is for reference only.
MSI Reminds You...

• According to the Intel North Bridge 945GC chipset spec, this board supports CPU of FSB 800MHz at maximum by default . However, you may let your board running at FSB 1066MHz (Core 2 Duo CPUs) by overclocking and adjusting the CPU FSB frequency in the BIOS:

Enter BIOS setup menu and go to [Frequency/Voltage Control] --gt; [Adjust CPU FSB Frequency]. There you can adjust the value to [266] for the Core 2 Duo E63XX/E64XX/ E66XX/E6700 CPUs. Please be noted that this is over-spec, and this overclocking behavior is not recommended and guaranteed.


Chipset



• Intel® 945GC Chipset

- Integrated Intel® GMA 950 graphics core



• Intel® ICH7 Chipset

- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.

- 4 SATAII ports with transfer rate up to 3Gb/s.

- 1 channel Ultra ATA 100 bus master IDE controller.

- PCI Master v2.3, I/O APIC.

- ACPI 2.0 compliant.



Main Memory



• Supports two unbuffered DIMM of 1.8 Volt DDR2 SDRAM

• Supports dual channel DDR2 memory architecture.

• Supports DDR2 400/533/667 memory interface. (4GB Max)



Slots



• One PCI Express x16 slot.

• One PCI Express x1 slot

• Two 32-bit v2.3 master PCI bus slots. (support 3.3v/5v PCI bus interface)



On-Board IDE/SATA



• One Ultra DMA 66/100 IDE controllers integrated in ICH7

- Supports PIO, Bus Master operation modes.

- Can connect up to two Ultra ATA drives.



• SATAII controller integrated in ICH7

- Up to 3Gb/s transfer speed.

- Can connect up to four SATAII devices.



Audio



• High Definition link controller integrated in Intel® ICH7 chip.

• Audio codec Realtek® ALC883, supports HD 5.1-channel audio-out.

• Audio codec Realtek® ALC888, supports HD 7.1-channel audio-out.

- Compliant with Azalia Rev 1.0 spec.



LAN



• Supports 10 / 100 /1000 Mb/s Fast Ethernet by Realtek RTL8111B.

- Supports ACPI Power Management.



Internal I/O Connectors
- ATX 24-Pin power connector

- 4-pin ATX 12V power connector

- 1 x CPU / System x 2 FAN connectors

- CD-in connector

- Front panel audio connector

- 2 x Front panel connectors

- 2 x USB 2.0 connector support additional 4 ports

- 1 x Floppy disk drive connector

- 4 x Serial ATAII connectors

- 1 x ATA100 connector

- 1 x SPDIF-out connector (for HDMI graphics card or SPDIF-out)

- Chassis intrusion switch connector

- Clear CMOS jumper
MSI Reminds You...

• The floppy disk cable will be optional.


Back Panel I/O Ports
- 1 x Parallel port

- 1 x Serial port (COM 1)

- 1 x Graphics Card port

- 1 x PS/2 keyboard

- 1 x PS/2 mouse

- 1 x 6 in 1 (ALC888) or 3 in 1 (ALC883) audio jack

- 4 x USB 2.0 ports

- 1 x RJ45 LAN jack



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 24.5cm(L) x 22.5cm(W) Micro-ATX Form Factor
Mounting
• 6 mounting holes.
