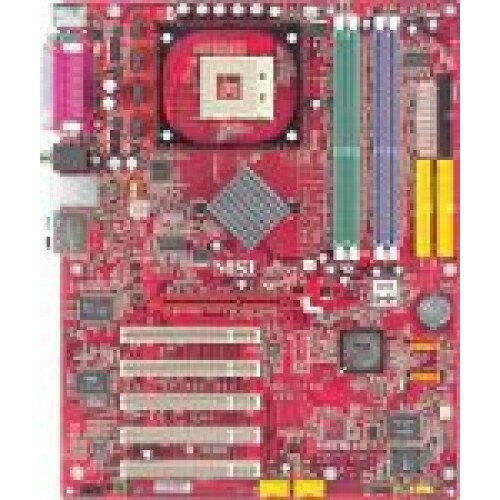

MSI PT880 NEO-FSR socket 478 VIA PT880

Specifications


CPU
• Supports Intel® P4 Northwood/Prescott/P4 Extreme Edition processors.

• FSB @ 400/533/800 MHz.

• Supports up to 3.4GHz or higher speed.

Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset
• VIA® PT880 Chipset

- Supports FSB 800/533/400MHz.

- Supports AGP 8X interface.

- Supports Dual channel DDR 400/333/266 memory interface.



• VIA® VT8237 Chipset

- High Bandwidth V-link Client controller

- Integrated Faster Ethernet LPC

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- ACPI

- Supports Serial ATA

- Supports USB2.0



Main Memory



• Supports 8 memory banks using four 184-pin DDR DIMMs.

• Supports up to 4GB memory size.

• Supports Dual channel DDR266/333/400MHz and up.

• Supports 2.5v DDR SDRAM DIMM.



Slots



• One AGP (Accelerated Graphics Port) slot

- Supports 8x/4x at 0.8V (AGP 3.0)

- Supports 4x at 1.5V (3.3V not supported)

- AGP specification compliant.

• Five 32-bit Master PCI Bus slots

- Supports 3.3V/5V PCI bus Interface



On-Board IDE



• An IDE controller on the VT8237 chipset provides IDE HDD/CD-ROM with PIO, Bus Master

and Ultra DMA 133/100/66 operation modes.

- Can connect up to four Ultra ATA drives.
• Serial ATA/150 controller integrated in VT8237.

- Up to 150MB/sec transfer speeds.

- Can connect up to two Serial ATA drives.



Audio



• 6 channels software audio codec Realtek ALC655

- Compliance with AC97 v2.2 Spec.

- Meet PC2001 audio performance requirement.



LAN



• VIA8237 integrated MAC + Realtek 8201BL PHY

- Supports 10Mbps and 100Mbps auto-negotiation operation.

- Supports ACPI power management.



• Gigabit LAN supported by Realtek 8110S single chip



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial ports (COM A)

- 1 parallel port supports SPP/EPP/ECP mode

- 8 USB 2.0 ports (Rear x 4 / Front x 4)

- 1 RJ45 LAN jack

- 1 D-Bracket2 pinheader

- 1 1394 port (Optional)

- 1 mini 1394 port (Optional)

- 1 Line-In / Line-Out /Mic

- 1 Coaxial SPDIF out (Optional)

- 1 Optical SPDIF out (Optional)

- 1 Rear Line-Out (Optional)

- 1 Center Line-Out (Optional)



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 30.5 cm(L) x 24.3 cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
