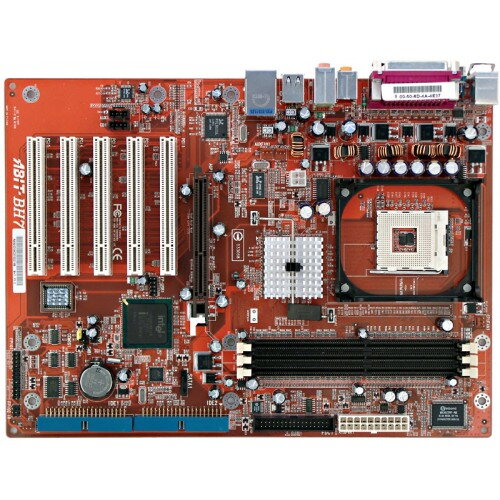

ABIT BH7 socket 478

Specifications
CPU
Supports Intel Pentium® 4 Socket 478 processors with 800 MHz FSB (OC)
Supports Intel Pentium® 4 Socket 478 processors with 533/400 MHz FSB
Supports Intel Hyper-Threading Technology
Chipset
Intel 845PE/ICH4 chipset
Supports Hi-Speed Universal Serial Bus (USB 2.0)
Memory
Three 184-pin DDR DIMM sockets (Un-buffered Non-ECC DIMM)
Supports 1 DIMM DDR 400 (OC)
Supports 2 DIMM DDR 333 (Max. 2GB)
Supports 3 DIMM DDR 266/200 (Max. 2GB)
Serial ATA 150
On board SATA Bridge supports 1 port SATA 150
Audio
6-Channel AC 97 CODEC on board
Professional digital audio interface supports 24-bit S/P DIF optical IN/OUT
LAN
On board 10/100M PCI Ethernet Controller
System BIOS
SoftMenu™ Technology to set CPU parameters
Supports Advanced Configuration Power Interface (ACPI)
Supports Desktop Management Interface (DMI)
Internal I/O Connectors
1 x AGP slot
5 x PCI slots
1 x Floppy Port supports up to 2.88MB
2 x Ultra ATA 100/66/33 Connectors (Supports 3 Devices)
1 x SATA 150 Connector
1 x USB 2.0 header
1 x CD-IN, 1 x AUX-IN
1 x IrDA
Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 Mouse
1 x Serial Port connector, 1 x Parallel Port connector
1 x S/P DIF IN connector, 1 x S/P DIF OUT connector
1 x Audio connector (Center/Subwoofer, Surround Speaker)
1 x Audio connector (Front Speaker, Line-in, Mic-in)
4 x USB Connectors, 1 x RJ-45 LAN Connector
Miscellaneous
ATX form factor
Hardware Monitoring - Including Fan speed, Voltages, CPU and System temperature
Supports Wake Up by LAN, Modem Ring, RTC Alarm, Keyboard and Mouse Power On
