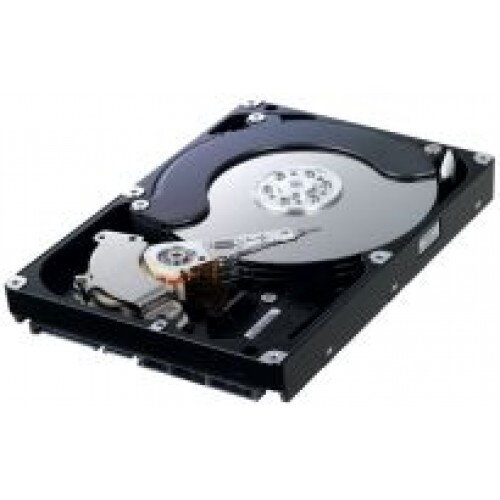

HE103UJ (1TB SATA)

Drive Configuration
Capacity *
1TB
Interface
Serial ATA 3.0Gbps
Buffer DRAM Size
32MB
Byte per Sector
512 bytes
Rotational Speed
7,200 RPM
Performance Specifications
Average Seek time (typical)
8.9 ms
Data Transfer Rate / Media to/from Buffer(Max.)
175 MB/sec
Data Transfer Rate / Buffer to/from Host(Max.)
300 MB/sec
Average Latency
4.17 ms
Drive Ready Time (typical)
12 sec
Reliability Specifications
Non-recoverable Read Error
1 sector in 10^15 bits
Start/Stop Cycles
50,000
MTBF
1,200,000 POH
Acoustics
Idle
2.70 Bel
Performance Seek
2.90 Bel
Environmental Specifications
Temperature / Operating
0 ~ 60 °C
Temperature / Non-operating
-40 ~ 70 °C
Humidity (non-condensing) / Operating
5 ~ 90 %
Humidity (non-condensing) / Non-operating
5 ~ 95 %
Liner Shock (1/2 sine pulse) / Operating
70 G
Liner Shock (1/2 sine pulse) / Non-operating
300 G
Altitude (relative to sea level) / Operating
-300 to 3,000 m
Altitude (relative to sea level) / Non-operating
-300 to 12,000 m
Power Requirements
Voltage
+5V±5%, +12V±10%
Spin-up Current (Max.)
2.4 A
Seek (typical)
8.6 W
Read/Write (typical)
7.9 W
Idle (typical)
7.7 W
Standby (typical)
0.8/1.2 W
Sleep (typical)
0.8/1.2 W
Physical Dimension
Height (Max.)
26.1 mm
Width
101.5 mm
Length
147.0 mm
Weight (avg.)
640 g
