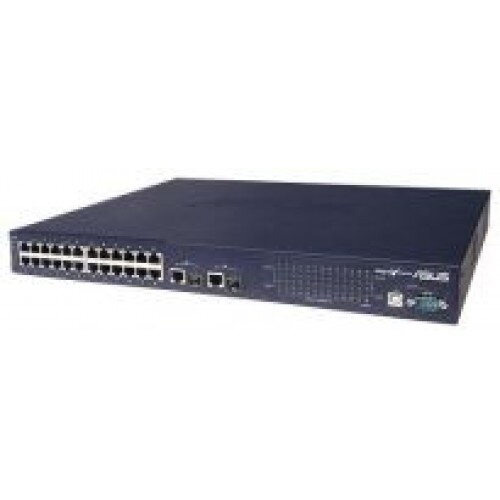

ASUS GigaX2024X Layer 2 Fast Ethernet Managed Switch

Specifications
Port Attributes
24 RJ-45 for 10 /100Mbps BASE-T ports
2 RJ-45 for 10/100/1000Base-T Port
Auto MDI/MDIX
Auto-negotiation: Speed, duplex mode, flow control
2 SFP slots for 1000SX or 1000LX transceiver
Auto-disabling 1000Base-T Port when link of fiber is on.
Network Management
VLAN
802.1Q tagging-based
802.1Q Port-based,
Up to 4096 groups
Quality of Service Classification
802.1p tagging
Port based priority
Four priority queues per port
IP Multicast Support(IPv4)
IGMP snooping(v1/v2)
Static multicast group
Spanning Tree, 802.1D/802.1W
802.3ad Link Aggregation
manual
LACP
802.3x flow control
Port Mirroring
Broadcast storming control
802.1x port-based network access control
local authentication server(MD5 only)
remote authentication through RADIUS
Dynamic VLAN assignment
Ethernet cable diagnosis tool
DHCP client
Statistics charts in WEB
Web-based Management GUI
ASUS CLI (Console/Telnet/SSH)
Firmware upgrade and configuration backup/restore by FTP and Web
Dual code image
SNMPv1/v2c/v3
MIBs
MIB-II
Ethernet MIB
Bridge MIB
Private MIB (Temperature, Fan Speed, and Voltages)
RMON groups (1,2,3,9)
Statistics
History
Alarms
Events
Performance
Max. MAC Address: 8K
Back plane Switching Capacity: 20 Gbps
Forwarding Rate: 6.6 Mpps
Power Requirement
Power supply
AC, 90~240VAC, 50/60HZ
Power consumption:
Max. 50W
Environmental Specification
Operating Temperature 0 to 40 degrees C
Non-operating Temperature -25 to 70 degrees C
Humidity 5% to 95% (Non-condensing)
Vibration IEC 68-2-36
Shock IEC 68-2-29
Drop IEC 68-2-32
Safety
UL1950
TUV
FCC Part 15, Class A
CE Mark
CCC
