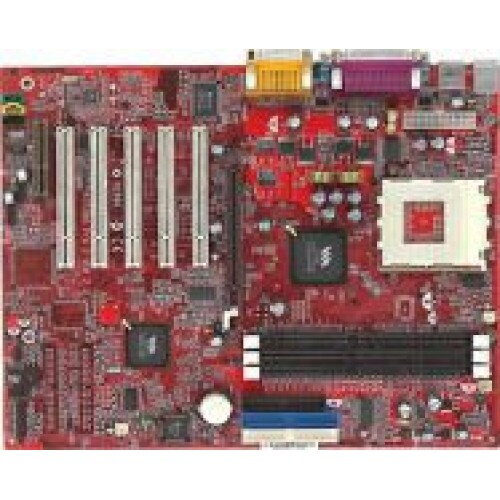

MSI K7T266 Pro2 VER:2.0 socket 462 základná doska

CPU • Supports Socket A for AMD® Athlon™/Athlon™ XP/Duron™ processor • Supports 800MHz up to 2100+ MHz processor Chipset • VIA® KT266A Chipset - FSB @200/266MHz - AGP 4X and PCI Advanced high performance memory controller • VIA® VT8233 Chipset - High Bandwidth V-link Client controller - Integrated Faster Ethernet LPC - Integrated Hardware Sound Blaster/Direct Sound AC97 audio - Ultra DMA 33/66/100 master mode PCI EIDE controller - ACPI FSB • 100/133(200/266)MHz clocks are supported. Main Memory • Supports six memory banks using three 184-pin DDR DIMMs • Supports a maximum memory size up to 3GB • Supports 2.5v DDR DRAM DIMM Slots • One AGP slot - AGP (Accelerated Graphics Port) specification compliant - Supports AGP 2.0 1x/2x/4x • One CNR (Communication Network Riser) slot • Five 32-bit Master PCI Bus slots - Supports 3.3V/5V PCI bus Interface On-Board IDE - An IDE controller on the VIA® VT8233 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes - Can connect up to 4 IDE devices Audio • Chip integrated (2 channel S/W audio) - Direct Sound AC97 Audio On-Board Peripherals • On-Board Peripherals include: - 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 2 serial ports (COMA + COMB) - 1 parallel port supporting SPP/EPP/ECP mode - 1 IrDA connector for SIR/ASKIR/HPSIR - 1 Audio/Game port - 1 D-Bracket™ header BIOS • The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. Dimension • 30.4 cm(L) x 23.5 cm(W) ATX Form Factor Mounting • 6 mounting holes.
