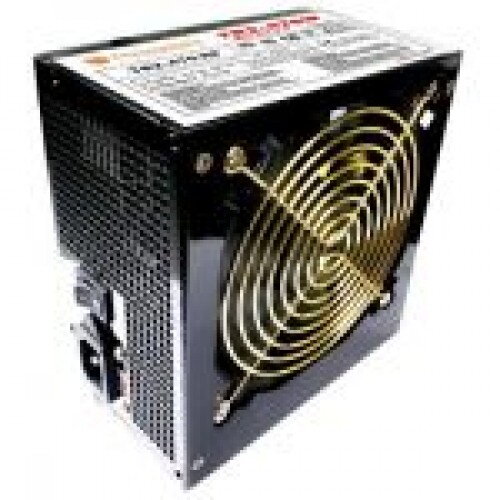

Thermaltake TR2 470W

Feature
top
- Complies with ATX 12V 2.0 Version.

- Support 6-pin PCI-Express, 4 SATA, and 20+4 pin connector.

- PFC function, improved energy efficiency and reduced current load on AC delivery systems.

- Low noise 12cm fan and mirror effect casing

- Protections against Input Protection, Over Power, Over Voltage, Short-Circuit, and No Load Operation.

- Safety / EMI Approvals: UL, CUL, TUV, CE, and CB certification. (For PFC Version)

UL, CUL, TUV, FCC, and CB certification. (For Non PFC Version)
Cooling System
top
Performance
top
Specification
top
GENERAL INFO
Model
W0089
Type
ATX 12V 2.0
Color
Black
Dimension （ W / H / D ）
14cm（L）x15cm（W）x8.6cm（H）
PFC （Power Factor Correction）
PFC
Power Good Signal
100-500 ms
Hold Up Time
8ms（minimum） at 80％Net Weight
1.93 kg
AC INPUT
Input Current
9.0A / 5.0A
Input Frequency Range
47 ～ 63 Hz
Input Voltage
115 VAC / 230 VAC
Cooling System
One 12cm Fan :

- SPEED : 2400 RPM（＋/-10％）

- DIMENSION : 120 x 120 x 25 mm

- TEMP. AUTO CONTROL

1525 rpm at 28.6 C～2393 rpm at 64.8 C
Noise
19dB at 2000RPM
MISCELLANEOUS
Efficiency
gt; 70％
Safety Approval
UL, CUL, TUV, CE, and CB certification
Certification
N/A
OUTPUT
　
＋3.3V
＋5V
＋12V 1
＋12V 2
-12V
＋5VSB
Max. Load
22A
32A
14A
15A
0.3A
2A
Min. Load
0.5A
0.5A
1.0A
1.0A
0.0A
0.0A
Load Reg.
5％5％5％5％10％5％Ripple

V（p-p）
50mV
50mV
100mV
100mV
150mV
50mV
* Specifications are subject to change without notice.

* The product picture(s) is only for your reference, it may differ from the actual product.
