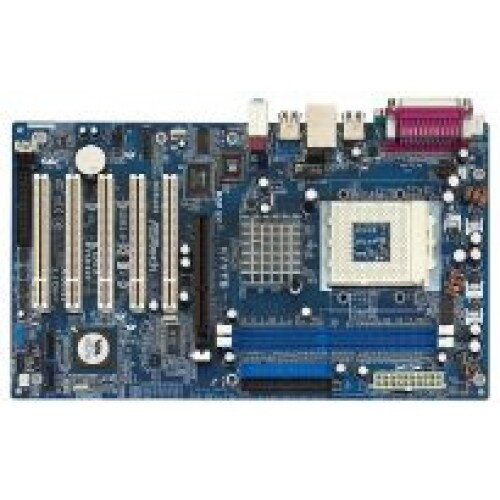

ASRock K7VT6 Socket 462, Socket A základná doska

Product Specifications
General
CPU
- Socket A (462) for AMD Sempron , Athlon XP/Athlon/Duron processor

- FSB 400/333/266 MHz
Chipset
- Northbridge: VIA® KT600

- Southbridge: VIA® 8237
Memory
- Supports DDR400/333/266 non-ECC, un-buffered memory

- DIMM slots: 2

- Max. capacity of system memory: 2GB
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Audio, Video and Networking
Graphics
- n/a
Audio
- CMedia CMI9761 6 channel AC'97 audio codec
LAN
- VIA® 6103 10/100 Ethernet LAN PHY

- 802.3u, WOL supported
Expansion / Connectivity
Slots
- 1 x AGP8X/4X slot , 1.5V

- 5 x PCI slots( PCI 2.2 compliance)
Connector
- 2 x SeialATA 1.5Gb/s connectors supports RAID,0,1,JBOD, SATA HDD_Hotplug

- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)

- 1 x Floppy connector

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- IDE LED connector

- CD/AUX audio in header

- Front panel audio connector

- 1 x USB 2.0 port pin header

- 1 x Gameport header
Rear Panel I/O
ASRock I/O Plus

- 6 x USB2.0 ports

- 1 x RJ45 LAN port

- 1 x Serial port (COM1)

- 1 x PS2 Keyboard connector

- 1 x PS2 Mouse connectors

- 1 x Parallel port (LPT1)

- 1 x Audio ports ( Line In/Out, Mic In)
Other Features / Miscellaneous
Unique Feature
Hybrid Booster:

- CPU Frequency Stepless control

- CPU Multiplier

- CPU Vcore Adjustment

- ASRock U-COP

- Boot Failure Guard (B.F.G)
Support CD
- Drivers, Utilities, Anti Virus Software, ASRock PC DIY Demo
Accessories
- Quick Installation Guide, Support CD, I/O shield

- Floppy/ATA 100 Cables

- 1 x SerialATA Data Cable

- 1 x SerialATA 1-to-1 Power Cable
Form Factor
- ATX, 305mm x 178mm
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
Certifications
- FCC, CE, MS WHQL
