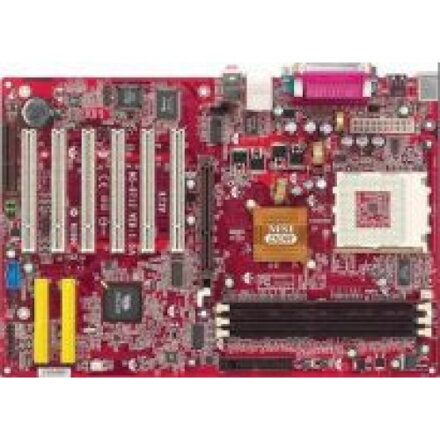

MSI KT3V Soket A / Socket 462 zakladna doska

CPU
• Supports Socket A (Socket 462) for AMD® Athlon™ XP/Athlon™/Duron™ processor

• Supports 800MHz up to Athlon™ XP 2800+ processor



Chipset
• VIA® KT333 Chipset

- FSB @200/266/333 MHz

- Supports DDR200/266/333 memory

- AGP 4X and PCI advanced high performance memory controller.



• VIA® VT8235 Chipset

- Integrated Direct Sound AC'97 audio

- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller

- ACPI amp; PC2001 compliant enhanced power management

- Integrated USB 2.0 controller



FSB
• 100/133/166(200/266/333)MHz clocks are supported.



Main Memory



• Supports six memory banks using three 184-pin DDR DRAMs.

• Supports up to 3GB memory size.

• Supports DDR333/DDR266/DDR200 DRAM

• No support ECC Function.



Slots



• One AGP (Accelerated Graphics Port) 1.5V 4x slot

• Six 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

• One CNR (Communication Network Riser) slot



On-Board IDE



• An IDE controller on the VT8235 chipset provides IDE HDD/CD-ROM with PIO,

Bus Master and Ultra DMA133/100/66/33 operation modes

• Can connect up to four IDE devices



Audio



• RealTek ALC650 6-channel audio

- Bundle MSI DVD 5.1 Channel (Optional)



LAN



• VIA VT6103 LAN controller



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- Vertical audio ports

- 1 SPDIF output (2 x 6) with housing (Optional)

- 6 USB ports (Rear x 4/ Front x 2)



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 30.5 cm(L) x 21 cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
