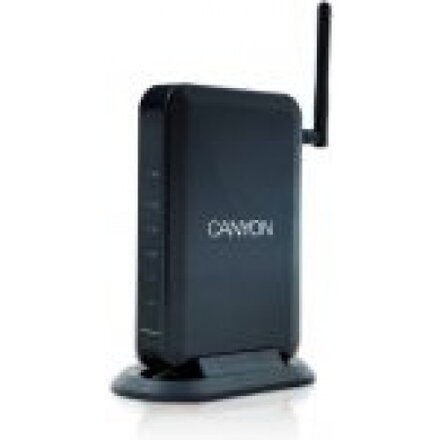

Canyon CNP-WFAP Wireless Access Point, AP

Networking - Wireless Access Point - Networking Specifications
Interface
Wi-Fi
Local Area Network Architecture
10Base-T/100Base-TX

Wireless
Networking Form Factor
External
Number of Ports
1
Data Link Protocol Supports
Fast Ethernet/Ethernet

IEEE 802.11b/g
Device Location
External
Network/Transport Protocol
TCP/IP

UDP
Data Bit Rate
54 Mbps
Frequency
2.4 GHz
Max. Range Indoors
100 m
Max. Range Open Space
300 m
Status Indicator
Link
Channels Quantity
13
Encryption Algorithm
128-bit WEP

64-bit WEP
Networking Compliant Standards
IEEE 802.11b

IEEE 802.11g

IEEE 802.3

IEEE 802.3u
Antenna
External
Certifications
FCC Part 15 Class B, CE Mark
Networking - Wireless Access Point - Interface Provided
Ethernet 10Base-T/100Base-TX Port Quantity
1
Ethernet 10Base-T/100Base-TX Port Connector Type
RJ-45
Antenna Connector Quantity
1
Networking - Wireless Access Point - Power
Power Device Location
External
Maximum Input Voltage
9 V
Networking - Wireless Access Point - Miscellaneous
External Color
Black
Package Type
Retail
EAN Code
8717371847265
Networking - Wireless Access Point - Dimensionsamp;Weight
Depth
31 mm
Height
156 mm
Width
102 mm
Nominal Weight
0.148 kg
Networking - Wireless Access Point - Environment
Maximum Operating Ambient Temperature
50 °C
Maximum Operating Humidity
90 %
Minimum Operating Ambient Temperature
0 °C
Minimum Operating Humidity
5 %
Warranty
Warranty Products returnable
Yes
Warranty Term (month)
24 month
Warranty validation Criteria
Serial Number
Logistic
Box Depth (mm)
430 mm
Box Height (mm)
390 mm
Box Weight Brutto (kg)
11.57 kg
Box Width (mm)
530 mm
Pack Depth (mm)
73 mm
Pack Height (mm)
208 mm
Pack Weight Brutto (kg)
0.265 kg
Pack Width (mm)
257 mm
Packs in Box
20
Pieces in pack
1
