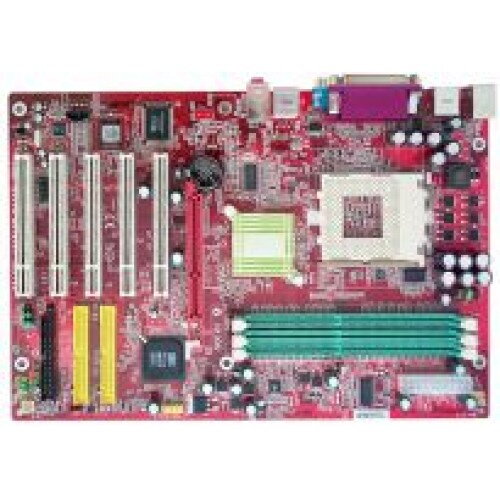

MSI 746F Ultra, Soket A / Socket 462 zakladna doska

CPU
• Supports Socket A (Socket-462) for AMD® Athlon™/Athlon™ XP/Duron™ processors.

• Supports up to 2800+ or higher speed.



Chipset
• SiS® 746FX chipset

- FSB @200/266/333 MHz.

- AGP 8X and PCI advanced high performance memory controller.



• SiS® 963L chipset

- Dual channel Ultra DMA 66/100/133 master mode EIDE controller.

- ACPI amp; PC2001 compliant enhanced power management.

- Low pin count interface for SIO.

- Integrated audio controller with AC97 interface.

- Integrated USB 2.0 controller.



FSB
• 100/133/166 (200/266/333)MHz clocks are supported.



Main Memory



• Supports six memory banks using three 184-pin 266/333/400 DDR DRAMs.

• Supports up to 3GB memory size.

• Supports 2.5v DDR DRAM DIMM.



Slots



• One AGP (Accelerated Graphics Port) slot.

- AGP specification compliant.

- Supports AGP 2.0 4x/8x.

• Five 32-bit PCI bus slots.



On-Board IDE



• An IDE controller on the SiS® 963L chipset provides IDE HDD/CD-ROM with PIO, Bus

Master and Ultra DMA133/100/66 operation modes.

• Can connect up to 4 IDE devices.



Audio



• AC97 link controller integrated in SiS® 963L chipset.

- 6-channel audio codec RealTek ALC650.



LAN



• Controller integrated in SiS 963L chipset.

- Supports 10Mb/s and 100 Mb/s operation.

- Realtek 8201BL.



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 1 line-in, line-out, mic-in port

- 6 USB 2.0 ports (Rear x 4/ Front x 2)



BIOS
• The mainboard BIOS provides "Plug amp; Play" function which detects the peripherals devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 29 cm(L) x 20 cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
