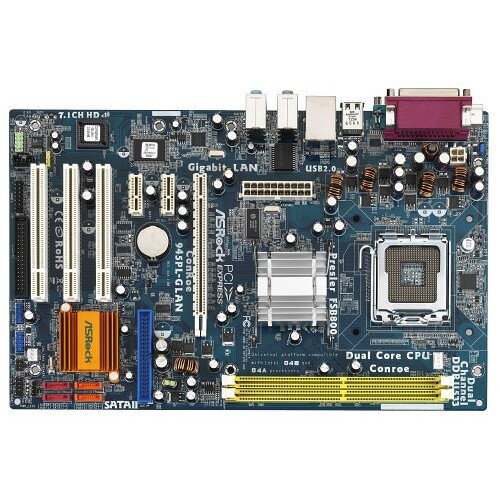

ASRock ConRoe945PL-GLAN LGA 775 Intel 945PL Express

LGA 775 for Intel® Core™ 2 Duo / Pentium® D / Pentium® 4 / Celeron® D processors
Intel® 945PL Chipset
Supports FSB 800/533 MHz processor, EM64T CPU and H-T Technology
Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
Supports Dual Channel DDR2 533 x 2 DIMM slots
1 x PCI Express x16 slot, 2 x PCI Express x1 slots
Hybrid Booster - Safe Overclocking Technology
4 x SATA2 3.0 Gb/s connectors
Supports PCIE Gigabit LAN 10/100/1000 Mb/s
HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices
7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
Windows® Vista™ Premium Logo Ready
HD 8CH I/O: 4 ready-to-use USB Ports, HD 7.1 channel audio jack
Product Specifications
General
CPU
- LGA 775 for Intel® Core™ 2 Duo* / Pentium® D / Pentium® 4 / Celeron® D processors

- FSB 800/533 MHz

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

*This motherboard supports FSB800-CPU. If you plan to adopt Core™ 2 Duo CPU on this motherboard, you can only adopt Conroe 800 E4XXX processors.
Chipset
- Northbridge: Intel® 945PL

- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR2 memory technology

- 2 x DDR2 DIMM slots

- Supports DDR2 533 non-ECC, un-buffered memory

- Max. capacity of system memory: 2GB
BIOS
- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- n/a
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111B

- Supports Wake-On-LAN

- Supports PXE
Expansion / Connectivity
Slots
- 3 x PCI slots

- 1 x PCI Express x16 slot

- 2 x PCI Express x1 slots
Connector
- 4 x SATA2 3.0 Gb/s connectors

(No support for RAID and Hot Plug functions)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
HD 8CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x COM Port

- 1 x Parallel Port (ECP/EPP support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 100 Cables

- 1 x SATA Data Cable

- 1 x SATA 1 to 1 Power Cable

- 1 x HDMI_SPDIF Cable
Hardware Monitor
- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
