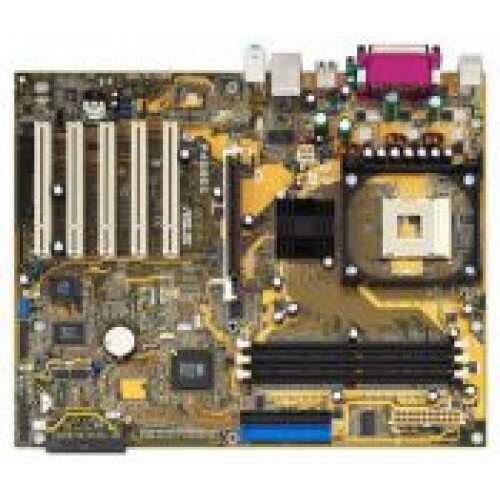

ASUS P4S800 Socket 478 základná doska

Specifications
CPU
Intel Socket 478 Pentium® 4/Celeron Processors

Intel® Hyper-Threading Technology ready

New power design supports next generation Intel Prescott CPU
Chipset
SiS 648FX

SiS 963L
Front Side Bus
800/533/400/ MHz
Memory
3 x DIMM, Max. 3 GB, DDR SDRAM ,Non-ECC, Memory

(PC2100/PC1600 up to 3 DIMMs; PC3200/PC2700 up to 2 DIMMs; 1GB PC3200/2700 with 32 DDR chips up to 1 DIMM only)
Expansion Slots
5 x PCI

1 x AGP 8x (1.5V only) 1 x ASUS Wi-Fi slot for optional wireless LAN upgrade
Audio
ADI AD1980 SoundMAX 6 -Channel CODEC

S/PDIF out on back I/O port
LAN
Integrated 100/10 LAN controller + VIA VT6103 PHY
Storage
2 xUltraDMA 133/100/66/33
USB
6 USB 2.0 ports
Special Features
ASUS EZ Flash

ASUS CrashFree BIOS 2

Support S/PDIF out interface

ASUS Instant Music Lite
Overclocking Features
Intelligent overclocking tools

- ASUS JumperFree

SFS (Stepless Frequency Selection)

- FSB tuning from 100MHz up to 266MHz at 1MHz increment

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)

CPU, Memory, and AGP voltage adjustable

Adjustable FSB/DDR ratio, Fixed AGP/PCI frequencies
Back Panel I/O Ports
1 x Parallel

1 x Audio I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Serial port

1 x S/PDIF Out

1 x LAN(RJ45) port

1 x USB 2.0/1.1
Internal I/O Connectors
1 x USB connectors supports additional 2 USB 2.0 ports

1 x CPU Fan connector

1 x Chassis Fan connector

1 x S/PDIF Out connector

1 x4-pin ATX 12V Power connector

20 -pin ATX Power connector

Front panel audio connector

Game/MIDI port connector

Chassis Intrusion connector

CD/AUX audio in
BIOS
2 Mb Flash ROM

DMI 2.0

PnP

WfM 2.0

SM BIOS 2.3

Award BIOS

ASUS C.P.R.(CPU Parameter Recall)

ASUS JumperFree

TCAV

ASUS EZ Flash

ASUS CrashFree BIOS 2
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOL/WOR by PME，Chasis Intrusion,SM Bus，
Support Disc
Drivers

ASUS PC Probe

ASUS LiveUpdate Utility

Trend Micro PC-cillin 2002 anti-virus software (OEM version)
Accessories
User's manual

x UltraDMA 133/100/66 cables

x Floppy disk drive cables

I/O Shield
Form Factor
ATX Form Factor

12 inchx 9.6 inch ( 30.5 cm x 24.5 cm )
