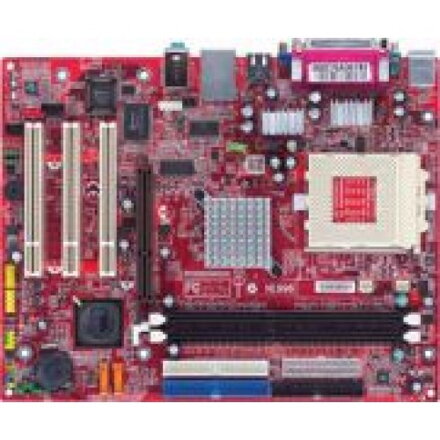

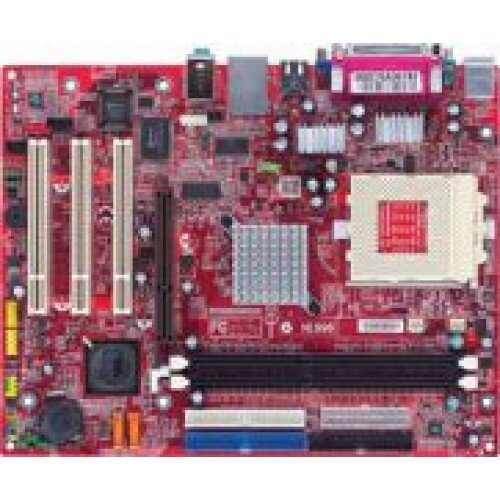

MSI KM4M-V Socket A/462 základná doska

CPU
• Supports AMD® Athlon™/Athlon™ XP/Duron™/Sempron™ processor

• Supports up to Athlon™ XP 3000+ processor

• FSB@ 266/333MHz

Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• VIA® KM400 Chipset

- Supports 266/333MHz front side bus

- Supports DDR200/266

- Supports AGP 4X /8X

- Integrated S3 Graphics UniChrome™ 2D/3D Graphics with motion compensation



• VIA® VT8237 Chipset

- Integrated Direct Sound AC'97 audio.

- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller.

- ACPI amp; PC2001 compliant enhanced power management.

- Integrated USB 2.0 controller.



Main Memory



• Supports four memory banks using two 184-pin DDR DIMM.

• Supports up to 2GB PC1600/PC2100/PC2700 DDR DRAM.

• Supports 2.5v DDR DRAM.



Slots



• One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot.

• Three 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).



On-Board IDE / Serial ATA



• An IDE controller on the VT8237 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and

Ultra DMA133/100/66 operation modes.

- Can connect up to four IDE devices.



• Serial ATA/150 controller integrated in VT8237.

- Up to 150MB/sec transfer speeds.

- Can connect up to two Serial ATA drives.



Audio



• AC'97 link controller integrated in VIA® VT8237

• VIA® VT1617 6-channel audio.



LAN



• VIA Fast Ethernet LAN.

- With external VT6103 Fast Ethernet PHY amp; 10/100 Base-T LAN transformer.

- Integrated Fast Ethernet MAC and PHY in VT8237.

- Supports 10Mb/s and 100Mb/s auto-negotation operation.

- Compliance with PCI v2.2 and PC99 standard.

- Supports ACPI power management.



On-Board Peripherals
On-Board Peripherals include:



- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

- 1 serial ports (COM 1) and COM2 on board with pin header

- 1 VGA port.

- 1 parallel port supports SPP/EPP/ECP mode.

- 8 USB 2.0/1.1 ports (Rear x 4 / Front x 4)

- 3 audio (Line-In/Line-Out/Mic) ports.

- 1 RJ-45 LAN jack



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface (DMI) function which records

your mainboard specifications.



Dimension
• 24.5 cm(L) x 19.2 cm(W) MicroATX Form Factor
Mounting
• 6 mounting holes.
