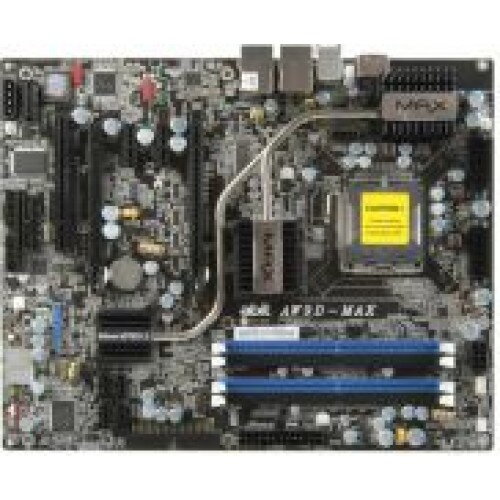

ABIT AW9D-MAX

CPU
Support Intel® Core 2 Quad, Core 2 Duo Extreme, Core 2 Duo, Pentium® D and Pentium® 4 processors with1066/800MHz FSB
Support Intel® 2006FMB Conroe CPU
Chipset
Intel® 975X / Intel® ICH7R Express Chipset
Memory
4 X 240-pin DIMM sockets support max. memory capacity 8GB
Supports Dual channel DDR2 800/667 Un-buffered / Non-ECC memory
Graphics
Supports Dual PCI-Express X16 slots (dual ATI® CrossFire™ Graphics)
LAN
On-board Dual PCI-E Gigabit LAN controller supports 10/100/ 1000M Ethernet
Audio
abit AudioMAX™ HD 7.1 CH
Supports Jack Sensing and S/PDIF In/Out
Dolby® Master Studio Certificated
Expansion Slots
2xPCI-EX16,2xPCI-EX1,1 xPCI, 1x AudioMAX™
Internal I/O
1 x Floppy port, 1 x UDMA 100/66/33 connector,
7 x SATA 3Gb/s connectors
2 x USB 2.0 headers, 2 x IEEE1394 headers
1 x FP-Audio header, 1 x CD-IN
Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 Mouse
4 x USB 2.0, 2 x RJ-45 LAN,
1 x eSATA
Serial ATA
ICH7R: 4 x SATA 3Gb/s supports Intel® Matrix Storage SATA RAID 0/1/0+1/5
ICH7R: Support SATA AHCI, providing native command queuing and native hot plug amp; play
Silicon Image:3132: 4 x SATA 3Gb/s, two SATA connectors of the same area can support SATA RAID 0/1
IEEE 1394
2 ports IEEE1394a at 400 Mb/s transfer rate
RoHS
100% lead-free process and RoHS compliant
Form Factor
ATX form factor 305 x 245mm
PCB Color: Black amp; Blue
abit Engineered
abit µGuru™ Technology
abit AudioMAX™ HD 7.1 CH
abit Silent OTES™ 2 Technology
Quick Power amp; Reset Buttons
Back-light Blue LED's
Low ESR and high ripple conductive polymer aluminum solid capacitors
