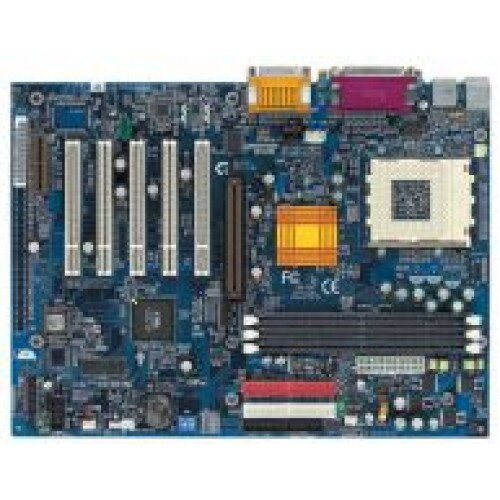

GA-7ZX (rev. 5.1) socket A/462 základná doska

CPU
Socket A for AMD Athlon™ /Duron™ 200/266MHz FSB processors
Supports 500MHz ~ 1.2GHz and faster
AUTO detect CPU voltage
Chipset
VIA VT8363A (KT133A) North bridge
VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)
MOTHERBOARD AC97 codec
Memory
3 168-pin DIMM sockets
Supports PC-100 / PC-133 SDRAM and VCM SDRAM
Supports up to 1.5GB DRAM
Supports only 3.3V SDRAM DIMM
Expansion Slots
1 x AMR (Audio Modem Riser) slot
1 x AGP slot supports 4X mode AGP 2.0 compliant
5 x PCI slots support 33MHz PCI 2.2 compliant
I/O Controller
2 x UDMA 33/66/100 bus master IDE ports on board
1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
2 x USB ports on board
2 x USB ports by cable (optional accessary)
IrDA TX / RX header ready
Power
ATX power connector
Power-on by LAN, RTC, Modem switch
Power-off by Windows 95/98/Me/2000 shut down switch
Form Factor
ATX, 4 layer PCB (30.4*22.7cm)
H/W Monitoring
CPU/System fan revolution detect
CPU/System temperature detect
System voltage detect (Vcore,VDD ,Vcc,+12V)
BIOS
AMI BIOS with enhanced ACPI feature for PC98/Win98/WinMe/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP CD-ROM bootable
AC recovery ON/OFF control
Auto-detect report system health status
Supports @BIOS™ Live Update
Other Features
Supports Wake-On-LAN (WOL); Support Internal/External modem ring on
Supports USB K/B or mouse wake up from S3
Includes 3 fan power connectors
Poly fuse for keyboard over-current protection
Supports STR (Suspend-To-RAM) function
Supports EasyTune III™
