RUBY TECH ES-2126C

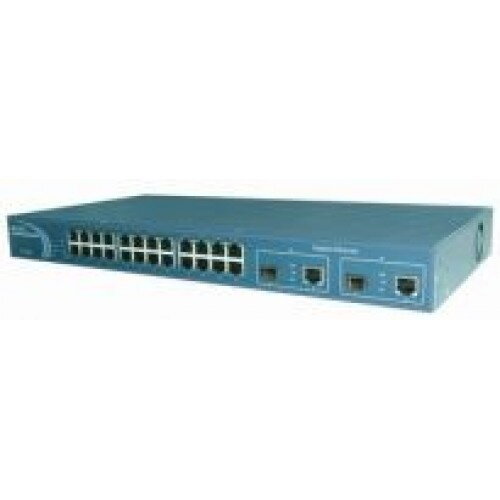

Ruby Tech ES-2126C 24-Port L2 Managed Fast Ethernet Switch + 2 TP/SFP or TP/GBIC Gigabit Dual Media

ES-2126C/D/CD is a Managed Fast Ethernet switch(ES-2126CD with VDC power input, range: 36V~72V, typical using 48VDC) that supports SNMP, Web UI and CLI management interface and with 24 10/100Base-TX (RJ-45 connectors) and 2 Gigabit dual media (RJ-45/SFP or RJ-45/GBIC) ports. It is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. In addition, the switch implements the QoS (Quality of Service), VLAN, MAC Filtering Policy, Port Mirror, VLAN and full L2 protocols. It has a rich feature set suitable for streaming VoIP, video, and data traffics for multimedia applications.
In this switch, Port 25, 26 support two types of media --- TP and SFP/GBIC Fiber (LC, BiDi-SC...); both ports support 10/100/1000Mbps TP or 1000Mbps SFP/GBIC Fiber with auto-detected function. 1000Mbps SFP/GBIC Fiber transceiver is used for high-speed connection expansion.
Key Features
n Q-in-Q VLAN for performance amp; security
n Mac-based 802.ad LACP with automatic link fail-over
n 2 dual media ports for flexible fiber connection
n Port Mirroring helps supervisor monitoring network
n Unknown Unicast/Broadcast/Multicast storm control
Benefits
QoS with four priority queues
The QoS(Quality Of Service) feature provides four internal queues to support four different classifications of traffic. High priority packet streams experience less delay inside the switch, which supports lower latency for certain delay-sensitive traffic. The ES-2126C/D/CD can classify the packet as one of the four priorities according to vip port, 802.1p priority tag, DiffServ and/or IP TOS. The QoS operate at full wire speed. The actual scheduling at each egress port can be based upon a strict priority, weighted round robin or a mix of both.
Port Mirroring
This mechanism helps track network errors or abnormal packet transmission without interrupting the flow of data. Allow ingress traffic to be monitored by a single port that is defined as mirror capture port. The mirror capture port can be any 10/100 port, 10/100/1000 port. Mirroring multiple ports is possible but can create congestion at the mirror capture port.
Q-in-Q VLAN for performance amp; security
The VLAN feature in the switch offers the benefits of both security and performance. VLAN is used to isolate traffic between different users and thus provides better security. Limiting the broadcast traffic to within the same VLAN broadcast domain also enhances performance. Q-in-Q, the use of double VLAN tags is an efficient method for enabling Subscriber Aggregation. This is very useful in the MAN.
Isolated Group provides protection for certain ports
The isolated group feature allows certain ports to be designated as protected. All other ports are non-isolated. Traffic between isolated group members is blocked. Traffic can only be sent from isolated group to non-isolated group.
Mac-based 802.ad LACP with automatic link fail-over
Dynamic fail-over means packets will not get assigned to any trunk member port that has failed. If one of the ports were to fail, traffic will automatically get distributed to the remaining active ports.
802.1x Access Control improves network security
802.1x features enable user authentication for each network access attempt. Port security features allow you to limit the number of MAC addresses per port in order to control the number of stations for each port. Static MAC addresses can be defined for each port to ensure only registered machines are allowed to access. By enabling both of these features, you can establish an access mechanism based on user and machine identities, as well as control the number of access stations.
802.1d Compatible amp; 802.1w Rapid Spanning Tree
For mission critical environments with multiple switches supporting STP, you can configure the switches with a redundant backup bridge path, so transmission and reception of packets can be guaranteed in event of any fail-over switch on the network.
2 dual media ports for flexible fiber connection
Port 25, 26 dual media ports are provided for flexible fiber connection. You can select to install optional transceiver modules in these slots for short, medium or long distance fiber backbone attachment. Use of the SFP/GBIC will disable their corresponding built-in 10/100/1000Base-T connections.
Broadcast/Multicast/unknown-unicast Storm Control
To limit too many broadcast/multicast/unknown-unicast flooding in the network, broadcast/multicast storm control is used to restrict excess traffic. Threshold values are available to control the rate limit for each port. Packets are discarded if the count exceeds the configured upper threshold.
Technical Specification


n Standard compliance
n IEEE 802.3 10Base-T Ethernet (Twisted-pair Copper)
n IEEE 802.3u 100Base-TX Ethernet (Twisted-pair Copper)
n IEEE 802.3ab 1000Base-TX Ethernet (Twisted-pair Copper)
n IEEE 802.3z 1000Base-X Ethernet
n IEEE 802.3x Flow Control Capability
n ANSI/IEEE 802.3 Auto-negotiation
n IEEE 802.1q VLAN
n IEEE 802.1p Class of Service
n IEEE 802.1x Access Control
n IEEE 802.1d Spanning Tree
n IEEE 802.1w Rapid Spanning Tree
n IEEE 802.3ad Link Aggregation Control Protocol (LACP)
n RoHS Compliance
n Subscriber Interface
n 24 are 10/100Mbps + 2 Gigabit Ethernet ports.
n Port 25,26 are Gigabit TP/SFP Fiber auto sense
n Auto-Negotiation and Auto-MDI/MDIX
n Backpressure flow control for half duplex.
n 802.3x flow control for full duplex.
n Connector: 24 RJ-45 and 2 dual media, RJ-45/SFP
n Performance
n Switching capacity
n Non-blocking switch fabric supports up to 24FE+2GbE ports
n 8 K MAC addresses
n 256k packet buffer and 128k control memory
n The maximum throughput is 8.8Gbps
n With 64 bytes packets throughput is 6.547Mpps
n Provides the wire speed forwarding rate
n VSM(Virtual Stacking Management)
n Up to 16 switches can be managed via Single IP limited to any specific Ruby-Tech models.
n Virtual stacking, no extra stacking hardware is required
n Distributed stacking, no physical central wiring closet is needed
n VLAN
n Supports SVL/IVL configuration to meet your VLAN requirement
n Port-base VLAN
n IEEE802.1q tag-base VLAN, 4094 max, up to 4k active VLANs including static plus dynamic entry
n IEEE802.1q tag-base VLAN
n Flooding unknown vlan frame setting, can flood packet with some vlan tag associated to a invalid/inactive vlan
n In tag-base VLAN, supports egress/ingress packet filter
n Q-in-Q is an efficient method for enabling Subscriber Aggregation
n QoS
n Port Based (VIP Port), 802.1p , TOS and Diffserv(IPv4/IPv6) based QoS packet classification
n Supports four level priority queues to prioritize in-bound and out-bound traffic
n Supports two scheduling, WRR and Strict
n Supports priority in a Q-in-Q tag
n Broadcast Storm
n Multicast/Broadcast/Unknown-Unicast Storm suppression.
n Port Mirroring
n Support 1: N RX port mirroring
n Supports port sniffer function with 3 modes:
(TX Monitor Mode, RX Monitor Mode and TX-RX pair Monitor Mode)
n Isolated Group
n Provide one group allows certain ports to be designated as protected
n Restricted Group
n Can decide the direction of transmitting packets for the specific port
n Rate Limit
n Ingress rate limit:
u Port 1~24: 66K up to 100Mbps
u Port 25, 26: 66K up to 1000Mbps
n Egress rate limit:
u Port 1~24: 66K up to 100Mbps
u Port 25, 26: 66K up to 1000Mbps
n Protocol
n LACP
n 2 Fast Ethernet +1 Gigabit Ethernet groups
n Per-grou
