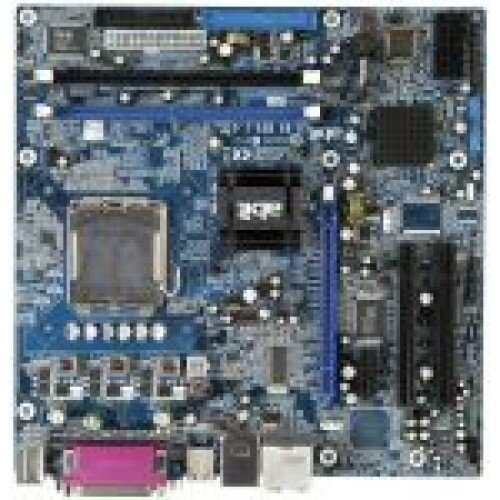

ECS 945P-A (V2.0A)

CPU
LGA775 socket for Intel Pentium 4/ Celeron D/ Pentium D processor
FSB 1066/800/533 MHz
Support Hyper-Threading Technology
CHIPSET
Intel® 945P amp; ICH7
North Bridge: Intel® 945P
South Bridge: Intel® ICH7
MEMORY
Dual-channel DDR2 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR2 667/533/400 DDR2 SDRAM
EXPANSION SLOT
2 x PCI Express x16 slot (Orange : x16 mode, Blue : x4 mode)
2 x PCI Express x1 slot (x1 or *diabled mode)
3 x PCI slots
*when use two PCI Express VGA card, this slot is disable
STORAGE
Supported by Intel®ICH7
2 x Ultra DMA100/66 devices
4 x Serial ATAII 3.0Gb/s devices
AUDIO
Realtek ALC655 6-Channel audio CODEC
LAN
Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller
REAR PANEL I/O
1 x PS/2 keyboard amp; PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Serial port (COM1)
1 x Parallel port (LPT)
1 x Audio port (Line-in,4x Line-out, SPDIF out)
INTERNAL I/O CONNECTORS amp; HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
1 x IDE connector
1 x IrDA for SIR header
1 x Speaker header
2 x USB 2.0 headers support additional 4 USB Ports
4 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
1 x CD in header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
ATX Size, 305mm*244mm
