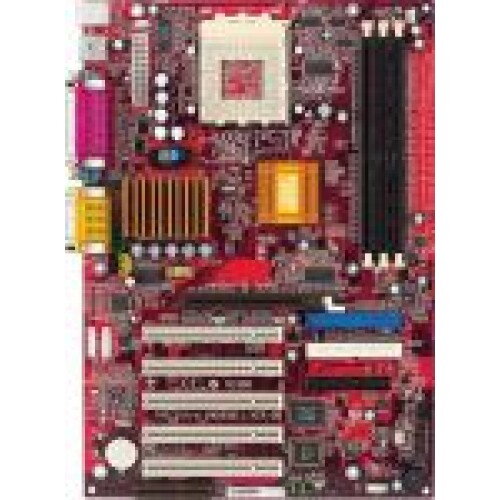

MSI 745 Ultra Socket A / Socket 462 základná doska

Specifications
CPU
• Supports Socket A AMD® Athlon™ XP/Athlon™/Duron™

processor up to 2600+

• Support AMD PowerNow!™ technology
Chipset
• SIS® 745 Chipset

- applies the multi-threaded architecture

- "Build-in Multi-threaded I/O Link" to provide enough I/O bandwidth up to 1.2GB/s.

- supports additional AGP slot with 4x Fast Write Transaction.

- offers AC'97 compliant interface.

- built-in fast IDE controller supports the ATA PIO/DMA, and the Ultra DMA33/66/100 function

that supports the data transfer rate up to 100MB per second.



FSB
• 100/133(200/266)MHz clocks are supported.



Main Memory



• Support six memory banks using three 184-pin DDR DIMM

• Support up to 3GB DDR333/DDR266/DDR200 SDRAM

• Support 3 unbuffered DIMM of 2.5V DDR DRAM

• No support ECC Function



Slots



• One AGP (Accelerated Graphics Port) 4x slot (1.5V only)

• Five PCI 2.2 32-bit Master PCI bus slots -- Support 3.3V/5V PCI bus Interface

• One CNR (Communication Network Riser) slot



On-Board IDE



• Provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation

modes.

• Can connect up to four fast IDE drives



Audio



• Chip integrated.

- AC'97 codec supports 2 channel Audio



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (Rear x 2/ Front x 2)

- 1 Line-In/Line-Out/Mic-In/Game port

- 2 on-board IEEE1394 ports (optional)



BIOS
• The mainboard BIOS provides "Plug amp; Play" function which detects the peripherals devices

and expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records

your mainboard specifications.



Dimension
• 30.5 cm(L) x 21.5 cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
