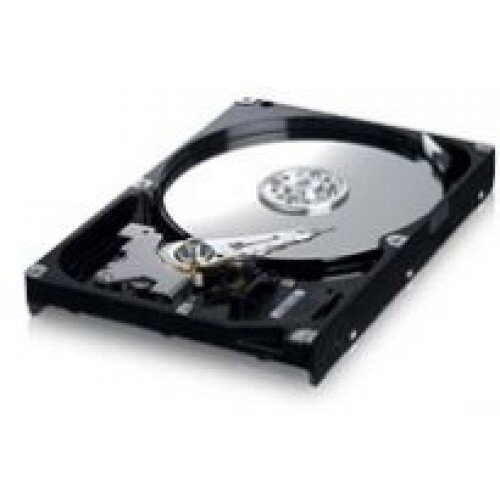

SpinPoint HD200HJ 200GB SATA/300 7200RPM 8MB Hard Drive

Drive Configuration
Capacity
200GB
Interface
Serial ATA 3.0Gbps
Buffer DRAM Size
8MB
Byte per Sector
512bytes
Rotational Speed
7,200RPM
Performance Specifications
Average Latency
4.17ms
Media Transfer Rate(Max.)
Buffer to/from Host (Max)
300MB/sec
Media to/from Buffer (Min/Max)
158MB/sec
Drive Reday Time(typical)
8sec
Reliability Specifications
Non-recoverable Read Error
1 sector in 10 1,014bits
Start/Stop Cycles
50,000
Acoustics
Idle
2.45Bel
Performance Seek
2.8Bel
Environmental Specifications
Temperature
Operating
0 ~ 60°C
Non-operating
- 40 ~ 70°C
Thermal gradient (Op/Nop)
20°C/hr
Humidity(non-condensing)
Operating
5 ~ 90%
Non-operationg
5 ~ 95%
Linear Shock(1/2 sine pulse)
Operating
63G
Non-operating
350G
Altitude(relative to sea level)
Operating
- 300 to 3,000m
Non-operating
-300 to 12,000 m
Power Requirenents
Voltage
+5V ± 5%, +12V ± 10%
Spin-up Current(Max.)
2.0A
Seek(typical)
4.8W
Read/Write(typical)
30W
Idle(typical)
3.2W
Standby(typical)
0.12W
Sleep(typical)
0.12W
Physical Dimension
Height (Max.)
25.4mm
Width
101.6mm
Length
146.1mm
Weight(avg.)
462.7g
