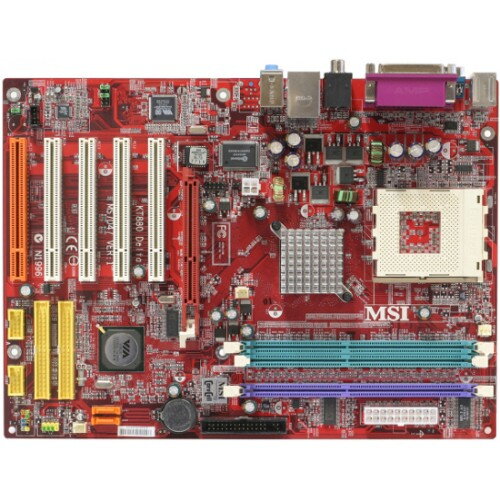

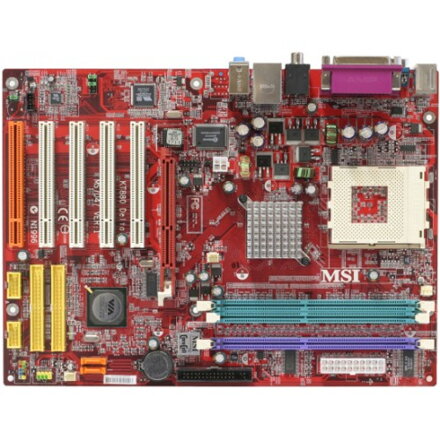

MSI KT880 Delta

Detail Specification
The Specification may change without notice. The actual products sold are different from areas. Please check the detailed Specification with your local dealers.
Basic Specification
|
Detail Specification
CPU
• Supports Socket A (Socket 462) for AMD® Athlon™ XP/Athlon™/Duron™/Sempron™ processor

• Supports to Athlon™ XP 3200+ processor or higher speed

• Supports 333/400MHz FSB

Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset
• VIA® KT880 Chipset

- Supports FSB 400/333/266 MHz.

- Supports AGP 8X/4X interface.

- Supports Dual-channel DDR 400/333/266 memory interface.



• VIA® VT8237 Chipset

- High Bandwidth V-link Client controller

- Integrated Faster Ethernet LPC

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- ACPI

- Supports Serial ATA

- Supports USB2.0



Main Memory



• Supports six memory banks using three 184-pin DDR DIMMs

• Supports a Dual-channel memory

• Supports a maximum memory size up to 3GB

• Supports 2.5v DDR DRAM DIMM



Slots



• One AGP (Accelerated Graphics Port) slot.

- Supports AGP 4x/8x.

- Supports AGP 3.0

• Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).



On-Board IDE / Serial ATA



• An IDE controller on the VT8237 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and

Ultra DMA 133/100/66 operation modes.

- Can connect up to four Ultra ATA drives.



• Serial ATA/150 controller integrated in VT8237.

- Up to 150MB/sec transfer speeds.

- Can connect up to two Serial ATA drives.

- Supports RAID 0 or RAID 1.



Audio



• AC97 link controller integrated in VIA® VT8237

• 6-channel software audio codec VIA® VT1617A

- Compliance with AC97 v2.2 Spec.

- Meet PC2001 audio performance requirement.



LAN



• VIA® VT8237 integrated MAC + VIA® VT6122

- Auto-negotiation operation of Giga-bit LAN phy (VT6122)



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port

- 1 parallel port supports SPP/EPP/ECP mode

- 8 USB 2.0 ports (Rear x 4 / Front x 4)

- 1 RJ45 LAN jack

- 1 D-Bracket2 pinheader

- 1 Line-In / Line-Out /Mic

- 1 RCA SPDIF-Out



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices

and expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records

your mainboard specifications.



Dimension
• 29.5 cm(L) x 21.5 cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
