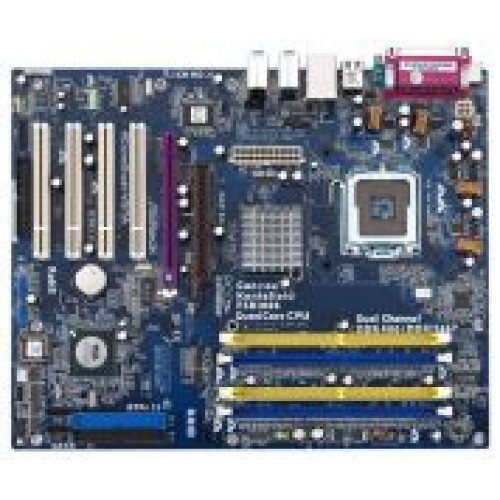

ASRock 4CoreDual-VSTA REV. G/A 1.00 LGA775

Product Specifications
General
CPU
- LGA 775 for Intel® Core™ 2 Quad* / Core™ 2 Extreme* / Core™ 2 Duo / Pentium® XE / Pentium® D / Pentium® 4 / Celeron® D, supporting Quad Core Kentsfield processors

- FSB 1066/800/533 MHz

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

*When you adopt Quad Core CPU, FSB may be reduced 5%
Chipset
- Northbridge: VIA® PT880 Ultra

- Southbridge: VIA® VT8237A
Memory
- Dual Channel DDR/DDRII memory technology*

- 2 x DDR2 DIMM slots

- Supports DDRII667/533 non-ECC, un-buffered memory

- Max. capacity of system memory: 2GB

- 2 x DDR DIMM slots

- Supports DDR400/333/266 non-ECC, un-buffered memory

- Max. capacity of system memory: 2GB

*DDRII and DDR are supported separately
BIOS
- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- n/a
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN
- VIA® PHY VT6103

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 4 x PCI slots

- 1 x PCI Express Graphics slot (@ x4 mode)

- 1 x AGP 8X slot
Connector
- 2 x SATA 1.5 Gb/s connectors, support RAID (RAID 0, RAID 1, and JBOD) and Hot Plug functions

- 2 x ATA133 IDE connectors (support 4 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
HD 8CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 133 Cables

- 1 x SATA Data Cable (optional)

- 1 x SATA 1 to 1 Power Cable (optional)

- 1 x HDMI_SPDIF Cable (optional)
Hardware Monitor
- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
