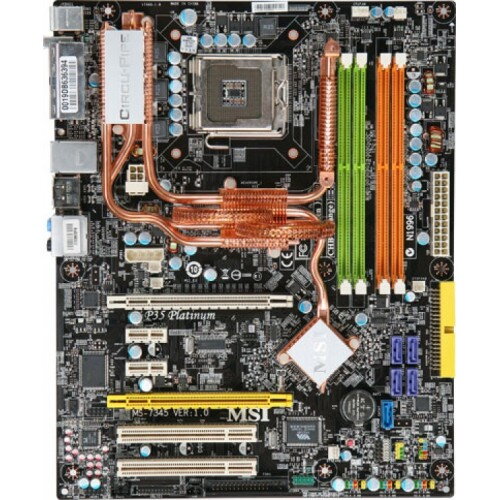

MSI P35 Platinum MS-7345 Ver:1.1

Socket 775 CPU (Max Support) Core 2 Quad Baseclock/Hyper Transport 800/1066/1333/1600 Chipset Intel® P35+ICH9R DDR2 Memory DDR2 667/800/1066 Memory Channel Dual DIMM Slots 4 Max Memory (GB) 8 PCI-Ex16 2 PCI-E Gen Gen1 (1x16, 1x4) PCI-Ex1 2 PCI 2 IDE 1 SATAII 5 RAID 0/1/5/10 LAN 10/100/1000*1 USB 2.0 ports (Rear) 6 Audio ports (Rear) 6+Optical SPDIF (Optional) 1394 ports (Rear) 1 (Optional) eSATA 2 Form Factor ATX CrossFire Y
CPU

• Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.• Supports Intel® Yorkfield, Wolfdale. • Supports FSB 1600/1333/1066/800 MHz.Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® P35 Chipset- Supports FSB 800/1066/1333MHz.- Supports dual channel, DDR2 667/800/1066 (OC).• Intel® ICH9R Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.- 4 SATAII with 2 eSATA ports with transfer rate up to 3Gb/s.- PCI Master v2.3, I/O APIC.- ACPI 2.0 compliant.- Serial ATA RAID 0/1/5/10. - Integrated AHCI controller.
Main Memory
• Supports four unbuffered DIMM of 1.8 Volt DDR2 DRAM
• Supports up to 8GB memory size.• Supports dual channel DDR2 memory architecture.• Supports DDR2 667/800/1066 (OC) memory interface.
Slots• Two PCI Express 16X slots with 1x16 and 1x4 operations (PCI Express Bus SPEC V1.0a compliant; supports CrossFire Technology)
• Two PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant)• Two 32-bit v2.3 master PCI bus slots. - Support 3.3v/5v PCI bus interface.
On-Board IDE/SATA
• One Ultra DMA 66/100/133 IDE controller integrated in Marvell® 88SE6111.
- Supports PIO, Bus Master operation modes.- Can connect up to two Ultra ATA drives.• SATAII controller integrated in ICH9R and Marvell® 88SE6111 chipset
- Up to 3Gb/s transfer speed.- Supports four SATAII ports and two eSATA ports by ICH9R.- Supports AHCI controller with SATA RAID 0/1/5/10.- Supports one SATAII port by 88SE6111.
Audio• Chip integrated by Realtek® ALC888/ALC888T
- Flexible 8-channel audio with jack sensing- Compliant with Azalia 1.0 spec.- Meet Microsoft Vista Premium spec.- Supports VoIP Card. (only for ALC888T)
LAN• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111B.
IEEE1394 / FireWire• VIA® VT6308 chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)- Transfer rate is up to 400Mbps.Internal I/O Connectors
- ATX 24-Pin power connector- ATX 4-pin VGA power connector- 8-pin ATX 12V power connector - CPU / System x 5 FAN connectors- CD-in connector- Front panel audio connector- Front panel connector- 1 x SPDIF-out pinheader - 1 x chasis intrusion connector- 1 x serial port pinheader- 3 x USB 2.0 connectors- 1 x Floppy disk drive connector- 5 x Serial ATAII connectors- 1 x ATA133 connector- 1 x IEEE1394 connector support additional 1 port (optional)- 2 x H/W OC pinheaders (optional)
Back Panel I/O Ports- 1 x PS/2 keyboard - 1 x PS/2 mouse - 2 x eSATA ports (please refer to Intel website for eSATA function)- 1 x 6 in 1 audio jack- 6 x USB 2.0 ports- 1 x RJ45 LAN jack- 1 x IEEE1394 port (optional)- 1 x Optical SPDIF out (optional)
BIOS• The motherboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension• 30.5cm(L) x 24.5cm(W) ATX Form Factor

Mounting• 9 mounting holes.
