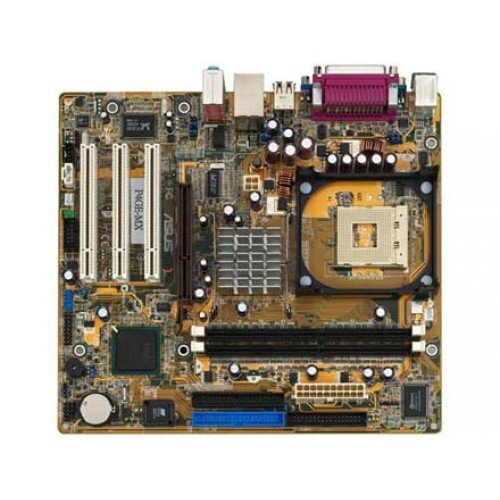

ASUS P4GE-MX Socket 478

Specifications
CPU
Intel Socket 478 Pentium® 4/Celeron Processors

Support Intel® next generation 45nm CPU

Intel® Hyper-Threading Technology ready
Front Side Bus
533/400/ MHz
Chipset
Intel 845GE

Intel ICH4

Memory
2 x DIMM, Max. 2 GB, DDR SDRAM , Memory
Expansion Slots
3 x PCI

1 x AGP 4X
VGA
Integrated 3D graphics
Storage
1 xATA 100/66/33
Audio
ALC655 6 -Channel Codec

S/PDIF out on back I/O port
LAN
Realtek RTL8100C
USB
6 USB 2.0 ports
Special Features
ASUS MyLogo

ASUS EZ Flash

ASUS CrashFree BIOS 2

ASUS C.P.R.(CPU Parameter Recall)

Support S/PDIF out interface
Back Panel I/O Ports
1 x Parallel

1 x VGA

1 x Audio I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Serial port

1 x LAN(RJ45) port

4 x USB 2.0/1.1
Internal I/O Connectors
1 x USB connectors supports additional 2 USB 2.0 ports

1 x CPU Fan connector

1 x Chassis Fan connector

1 x S/PDIF Out connector

1 x4-pin ATX 12V Power connector

20 -pin ATX Power connector

Front panel audio connector

Game/MIDI port connector

CD/AUX audio in
BIOS
3 Mb Flash ROM

DMI

PnP

SM BIOS 2.3

Award BIOS

ACPI

ASUS MyLogo

ASUS CrashFree BIOS 2
Manageability
WOL by PME,WOR by PME,
Support Disc
Drivers

ASUS PC Probe

Trend Micro PC-cillin 2002 anti-virus software (OEM version)
Accessories
User's manual

x UltraDMA 133/100/66 cables

x Floppy disk drive cables

I/O Shield
Form Factor
uATX Form Factor

8.6inchx9.6inch ( 21.8 cmx24.5cm )
