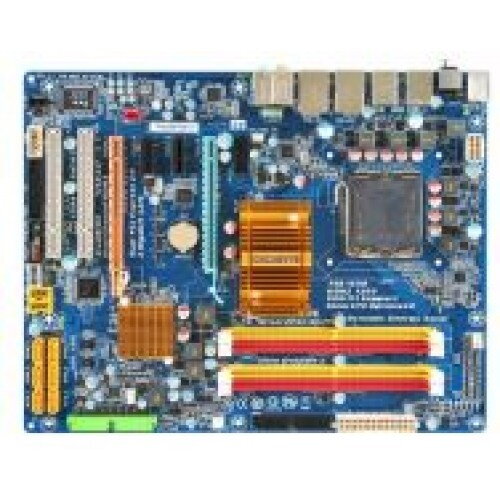

GA-EP45-DS3R (rev. 1.0)

Processor
LGA775
Intel® Core™ 2 Extreme / Intel® Core™ 2 Quad / Intel® Core™ 2 Duo / Intel® Pentium® Dual-Core / Intel® Celeron®
1600/1333/1066/800 MHz FSB
L2 cache varies with CPU
Chipset
Intel® P45 Express
Intel® ICH10R
iTE IT8718
T.I. TSB43AB23
Realtek ALC889A 8-channel audio codec
Memory
Dual channel memory architecture
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
DDR2 1333+/1066/800/667 MHz
LAN
2 x Realtek 8111C chips (10/100/1000 Mbit)
Support for Teaming
Internal I/O Connectors
1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector
1 x CD in
1 x Chassis Intrusion connector
1 x COM
1 x CPU fan connector
1 x FDD
1 x front audio connector
1 x front panel connector
1 x IDE
1 x IEEE 1394a
1 x LPT connector
1 x power fan connector
1 x power LED connector
1 x SPDIF in
1 x SPDIF out
2 x system fan headers
2 x USB 2.0/1.1
6 x SATA 3Gb/s
Expansion Slots
1 x PCI Express x16 slot, running at x16
1 x PCI Express x16 slot, running at x8
2 x PCI
3 x PCI Express x1
Rear Panel I/O
1 x PS/2 mouse port
1 x SPDIF out (coaxial)
1 x SPDIF out (optical)
2 x IEEE 1394a
2 x RJ45 LAN
6 x audio ports (Line In / Line Out / MIC In / Surround Speaker Out(Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
8 x USB 2.0/1.1
PS/2 (Keyboard/Mouse)
Form Factor
ATX, 305mm x 244mm
H/W Monitoring
CPU overheating warning
CPU/System fan speed control
CPU/System temperature detection
CPU/System/Power fan failure warning
CPU/System/Power fan speed detection
System voltage detection
BIOS
2 x 8 Mbit flash ROM
Award BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Supports DualBIOS™
Bundle Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft® Windows® Vista/XP
Other Features
@BIOS™
Download Center
DualBIOS™
Q-Flash™
Support for Q-Share
Support for Time Repair
Support for Ultra TPM

*This feature is not available in Russia
Supports EasyTune
Xpress™ Install
Xpress™ Recovery 2
Remark
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website
Most hardware/software vendors no longer offer support for Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Unique Features
Dynamic Energy Saver Advanced
